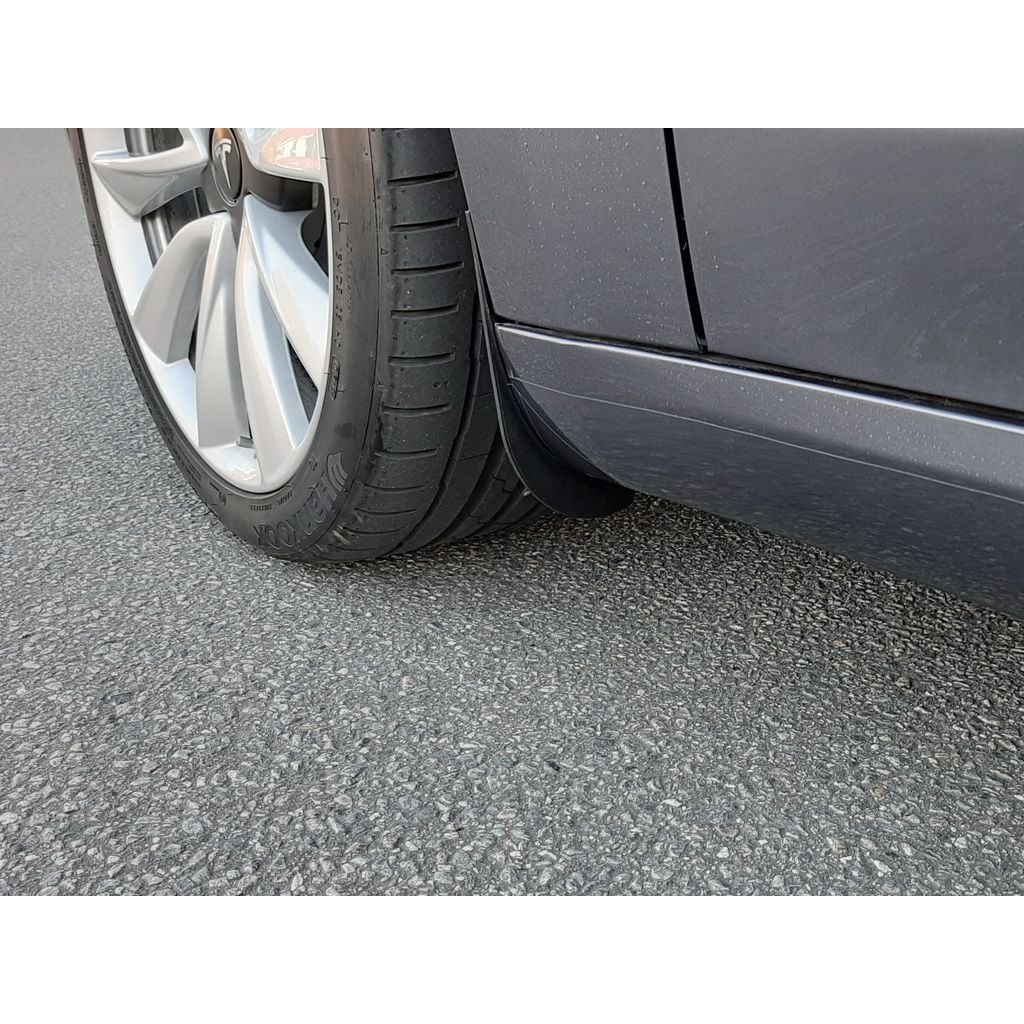

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Mud guards front
Mud guards front design listed for 2017–2026 Tesla Model 3. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model 3
- Year range
- 2017–2026
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Print the parts, remove any sharp edges, blobs or other imperfections and open up the hole for the push-in clip. Rub over the visble areas with a 3M Scotch Brite pad and plenty of water to obtain a nice matte finnish.
Hardware:
6 pc M3x8mm stainless screws (hex button head or hex socket head recommended), 6 pc stainless M3 nuts. Please note that the screw length must be exactly 8mm.
Tools:
Allan-key for the M3 screws and a flat screw-driver for the Tesla push-in rivet
Installation:
- Clean the area thoroughly, there must be no sand or dirt between the paint and the printed parts.
- Release and remove the Tesla plastic push-in rived using the flat screw-driver.
- Assemble the printed mud guard and the back plate. Let only a few threads on the M3 screws grip into the M3 nuts to make maximum slack between the two printed parts.
- Keeping some spacing between the printed parts, carefully slide the mud guard into position, the back-plate goes behind the steel lip.
- Adjust position.
- Reinstall the Tesla plastic push-in rivet.
- Fine adjust the position again if neccessary.
- Tighten the M3 screws.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
