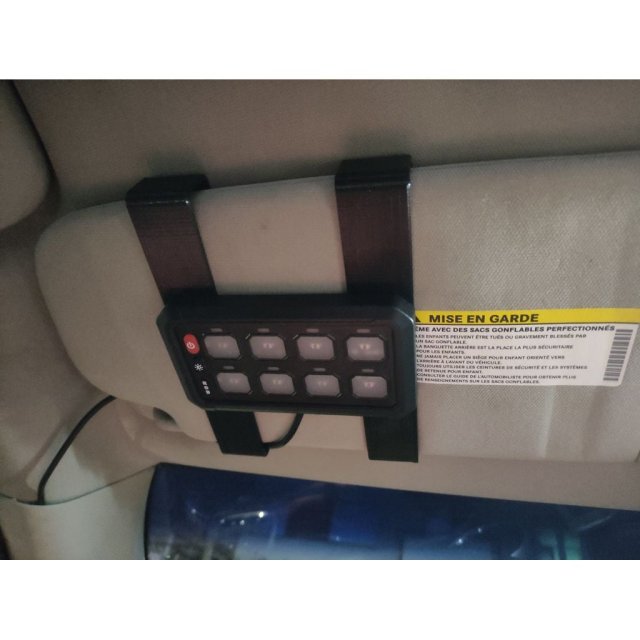

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
AUX Switch Panel Sun Visor Bracket
AUX Switch Panel Sun Visor Bracket design listed for 2011–2021 Jeep Grand Cherokee. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Grand Cherokee
- Year range
- 2011–2021
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I was looking for a smart and convenient place to hold my AUX switch in the car so it doesn't interrupt anything.
I'm not a big fan of screwing things directly to the dashboard and on the other hand I didn't wanted to have it loose with cable dangling all around.
It's designed to fit Aliexpress Colight 8 gang AUX panel into my 2011 Jeep Grand Cherokee WK2. Not sure but it seems to me that AUXBEAM switch panel is pretty similar to the one I have.
I believe the same sun visor was used until the end of WK2 production as well as for Dodge Durangos.
You can easily remix it to fit any other car or switch panel - I'm including STEP file.
Recommend using PETG for that application. You'll also need 6x M3x10 countersunk screws to secure the brackets to AUX panel
bracket_v1: 5mm thick, no screw holes, no embossment (I used it only to check if it fits visor, 5mm is too thick and top stiff due to that)
bracket_v2: 3mm thick (fits far better, still sturdy), with 20mm width embossment fitting switch panel and screw holes (20mm fits very tight)
bracket_v3: 3mm thick, with 19mm width embossment fitting switch panel and screw holes (fits little loose)
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
