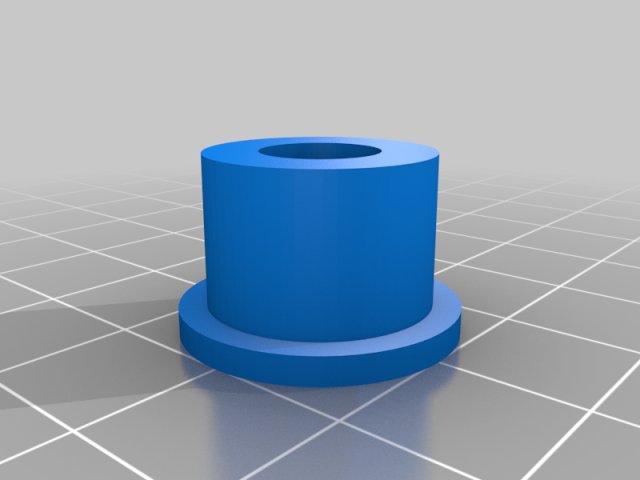

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Gear Lever Cable Bushing
Gear Lever Cable Bushing design listed for 1998–2004 Ford Focus. Listed category: other. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Focus
- Year range
- 1998–2004
- Submodel
- Zetec 1.6
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Obviously print it with 100% infill as it's a constructive part and it takes only 8 minutes to print.
I used a zip-tie to prevent it from sliding off the gearbox (small chance that it would without it). Officially a metal C clip should be used to be sure that it will never come off unintended.
Outer diameter = 16.125mm, inner diameter = 8.4375mm, height = 12.7mm
I've also uploaded the scad file i've made this stl with, but i didn't spend time on actually making it configurable. The FN parameter is just the smoothness of the objects which has no use to adjust. I only uploaded it for backup purposes. If you download OpenSCAD you can tinker with the code.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
