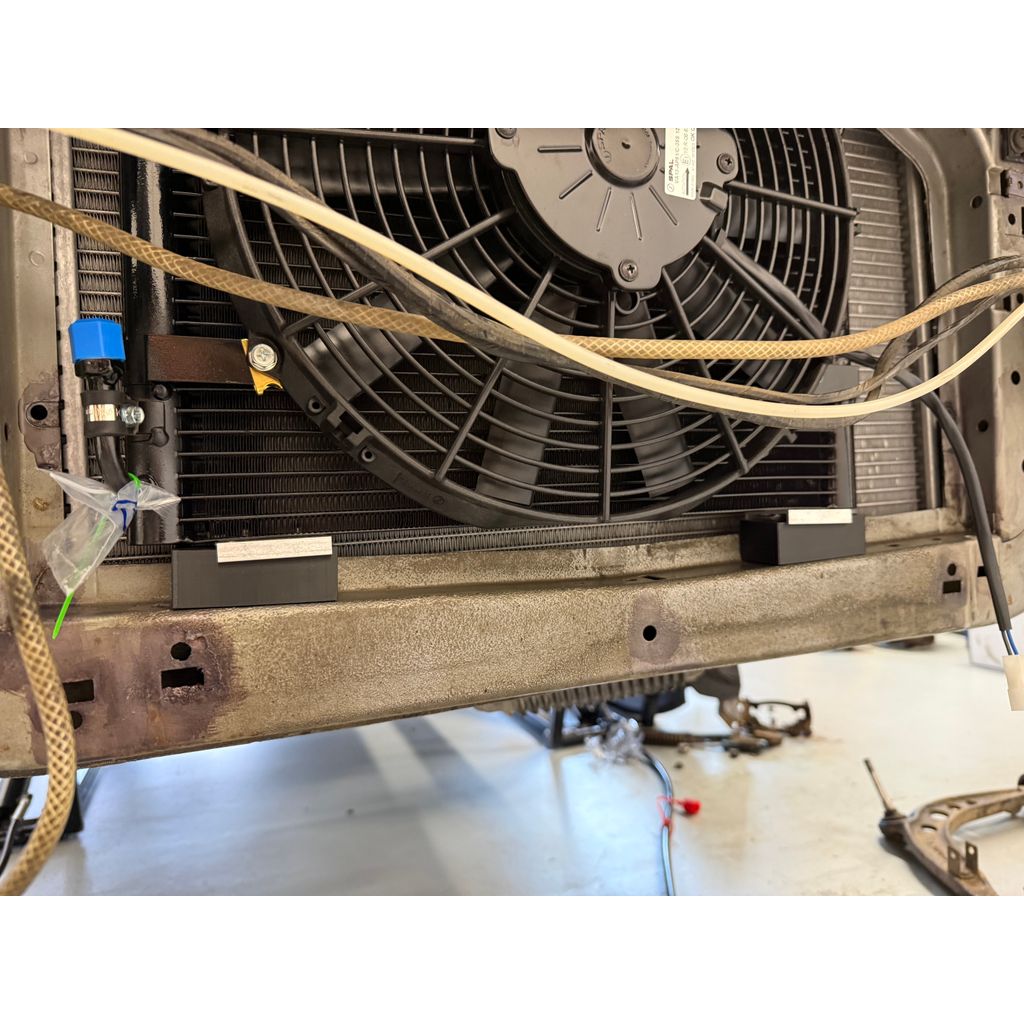

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
AC Condenser Pads
AC Condenser Pads design listed for 1982–1994 BMW 3 Series. Listed category: cooling-system. Verify dimensions, fitment and material suitability before printing.
- Make
- BMW
- Model
- 3 Series
- Year range
- 1982–1994
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Bolt hole designed to fit M5 bolt. In testing a M5x20mm bolt was used with an M5 washer.
As my E30 did not come with air conditioning I used a M5 zinc rivnut to provide an appropriate mounting point.
I am certainly an amateur at both 3D modelling and printing so any feedback would be more than welcome. I have added a fillet to the side closest to the radiator as the car features the same but I believe it is too small to hugely matter when printing. My frame also appears to not be flat, I am unsure if this is a feature of all E30s so I chose not to design the part to cater for it. I believe in my case this is also exacerbated by the condenser seemingly being bowed in the opposite direction. Happy to adjust if it would help.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
