Headlight Back Cap
Headlight Back Cap design listed for 2006–2014 Opel Corsa. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Opel
- Model
- Corsa
- Year range
- 2006–2014
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

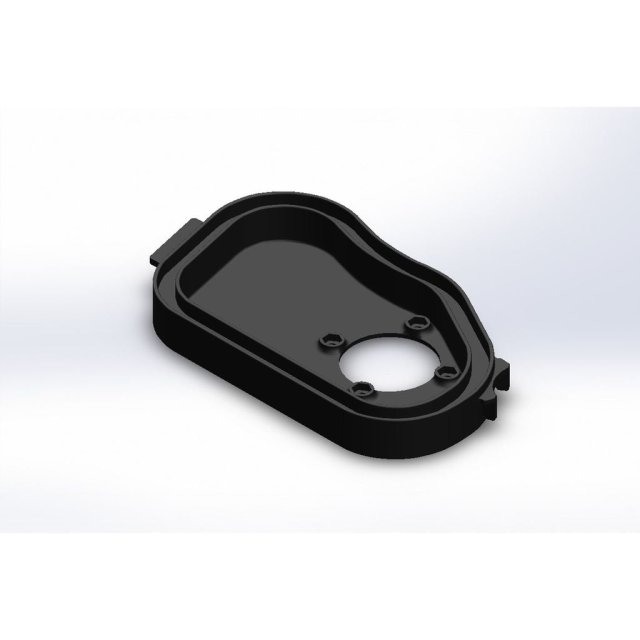

I designed some new back caps, that use 40mm fan cover with filter so the bulbs can stay cool, but also dust is kept away from entering the headlight.
As I stated before, this is a tight fit and since different manufacturers make headlights for the Corsa, small deviations in dimensions between them might make the 3D printed back caps not fitting.
Below is a list of some budget(max price for pair 15euros) H7 LED bulbs I bought from different manufacturers.
-NOVSIGHT-NIGHTEYE: High quality bulbs but they don't fit.
-S2: Too long in the front, they push the reflector. Also they have a short lifespan. (not recommended)
-H9 fanless bulbs: They fit easily but they are low quality and low brightness.
-C6: Nice cold white and pretty bright but they are a bit too long and push the reflector. Decent quality
-Auxito C7: A bit pricey but they are a perfect fit and very bright! (highly recommended)
I have also included STL files of the backcaps without the holes for the fan guard(just in case you lost your stock backcap or it broke).
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
