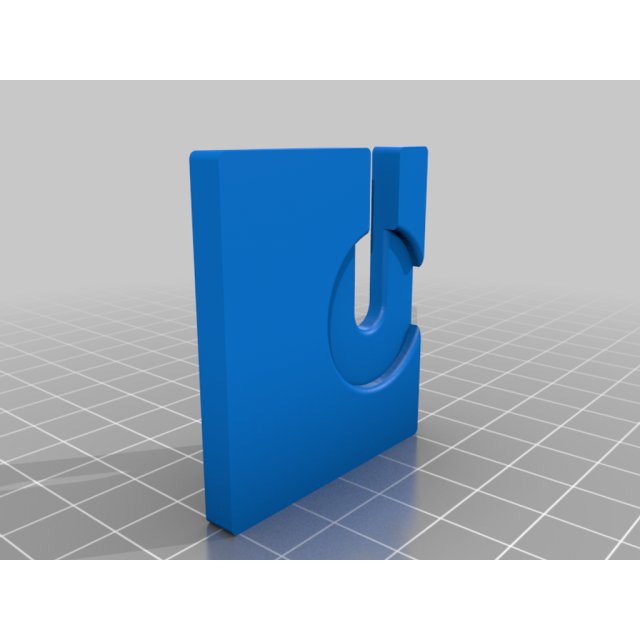

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Rear Dashcam Mount
Rear Dashcam Mount design listed for 2010–2024 Toyota 4Runner. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- 4Runner
- Year range
- 2010–2024
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The V3 I uploaded a while ago should have enough space to mount the backup camera. I've tested it and used it myself. Please leave feedback if it works or doesn't for you. Thank you!
Update: 1/10/2023
I intend to make just one or two changes to this to make it a little easier to route the cable and possibly more surface area for the camera. Will also add the fastener part number incase you want to buy a few from Toyota (or from ebay, it's really inexpensive) to replace what you're using now. Stay tuned!
---- snip snip
After seeing a few on the www.toyota-4runner.org, and unable to reach those who made them, I decided to make my own.
This doesn't require any special riveting, bolts, or screws; it reuses the original fastener that you pull out with a pair of pliers.
This is for a Viofo rear dash cam, but you can use any CAD app and enlarge (or shrink) the pad area.
I suggest PETG if we're talking Arizona or extremely warm climates. Otherwise PLA or PLA+ will do.
Steps:
1. Print this mount
2. take your Viofo / dashcam (or what have you) and hold it down onto the mount for a minute or two. Let it sit over night.
3. Take a pair of pliers and rip out the fastener (save it. If you goofed it up and tore it up, you can easily find an inexpensive replacement bunch on ebay called "toyota headliner retainers")
4. pull power cord through hole and through the guide on the mount
5. place mount w/cam in place and push the fastener through
6. Make sure it's good and steady, and then plug in the power.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
