Design by doumas · Original design · CC-BY-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

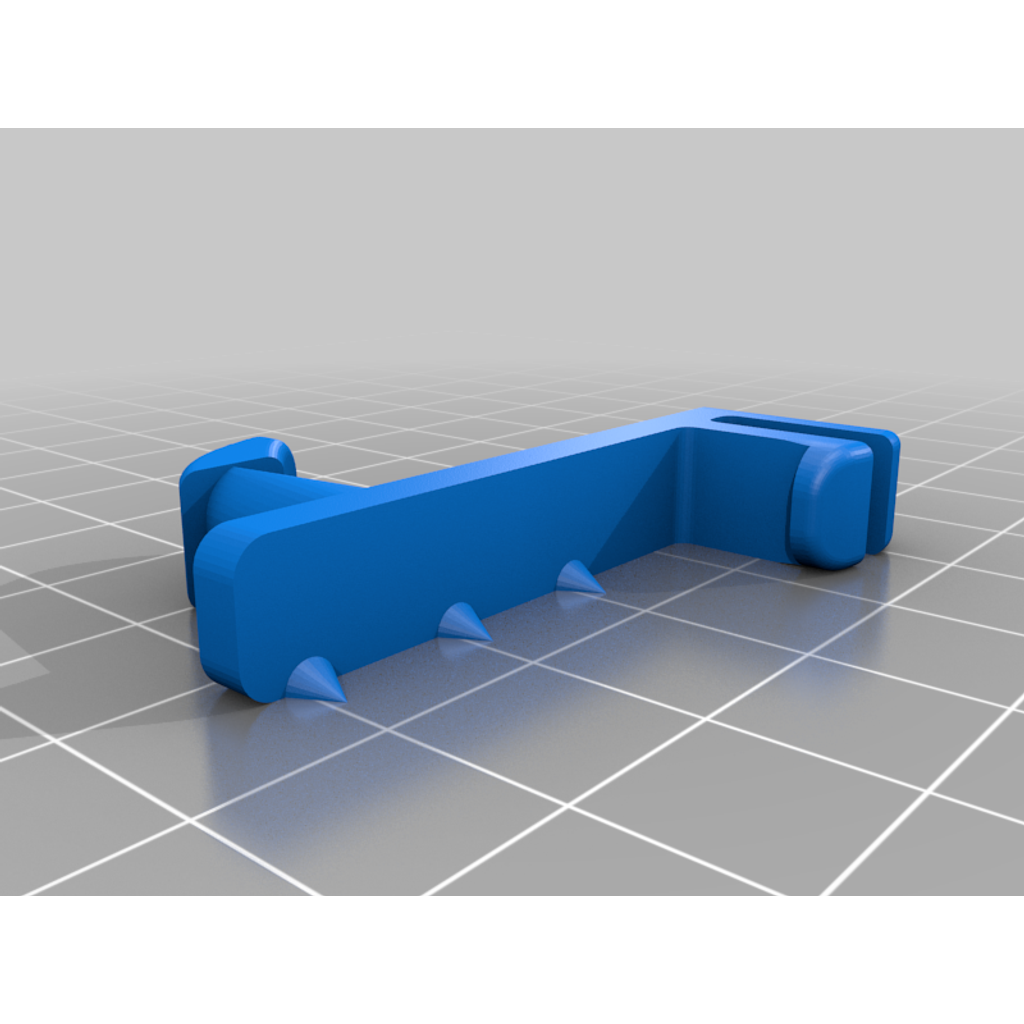

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Carpet Clip
Carpet Clip design listed for 2010 Toyota Prius. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Prius
- Year range
- 2010
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
There are other Toyota carpet clips on Thingiverse that look similar but are too chunky to work in the Prius. This one has a carpet hook that is slim enough to fit in the more petite Prius carpet holes. The main bar that hold the two carpet pegs is slim enough that it doesn't cause a noticeable bulge under the carpet.
This design is functionally equivalent to to original but has cosmetic design differences that make it easy to 3D print. Since the majority of the clip is hidden under the carpet when installed, who cares? Any filament type would probably work but I used PETG filament because it's fairly resistant to warping in the high temperatures that cars can reach in the summer. I printed with draft quality resolution and 100% infill. Print in the orientation as uploaded. (On its side with the three small anti-slip pins on the bottom.) No rafts or support needed.
v2 has slightly beefier dimensions in select areas in order to prevent breakage.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
All available source data
- Id
- 0ec34ab8-92a5-4819-8def-d4527e5cdb1e
- Part Name
- Carpet Clip
- Slug
- carpet-clip
- Category
- interior
- Cswp Approval Status
- pending
- Download Status
- approved
- Make
- Toyota
- Model
- Prius
- Year
- 2010
- Year End
- Not supplied
- Submodel
- Not supplied
- Engine
- Not supplied
- Created At
- 2026-07-08T12:39:05.281509+00:00
- Origin
- aggregated
- Source
- thingiverse
- Source Url
- https://www.thingiverse.com/thing:4939002
- Source Creator Url
- https://www.thingiverse.com/doumas
- Cc License Code
- CC-BY-4.0
- Cc License Url
- https://creativecommons.org/licenses/by/4.0/
- For Sale
- No
- Fulfillment Mode
- platform
- Manual Price Cents
- Not supplied
- Image Url
- https://r2-upload.3dcarparts.workers.dev/file/parts/0ec34ab8-92a5-4819-8def-d4527e5cdb1e/images/carpet-clip-1_1783514346820_puljaw.jpg
- Author
- doumas
- Estimated Price Cents
- Not supplied
- HasMultipleModelFiles
- No
- ModelFileCount
- 0
- Download Count
- 0
- Detail Url
- https://3dcarparts.org/library/2010/Toyota/Prius/carpet-clip
Source price fields and sale flags are metadata, not our selling prices. Their currency was not specified in the catalog. File counts do not mean files were downloaded or tested. No manufacturer savings or discontinued status is inferred.
