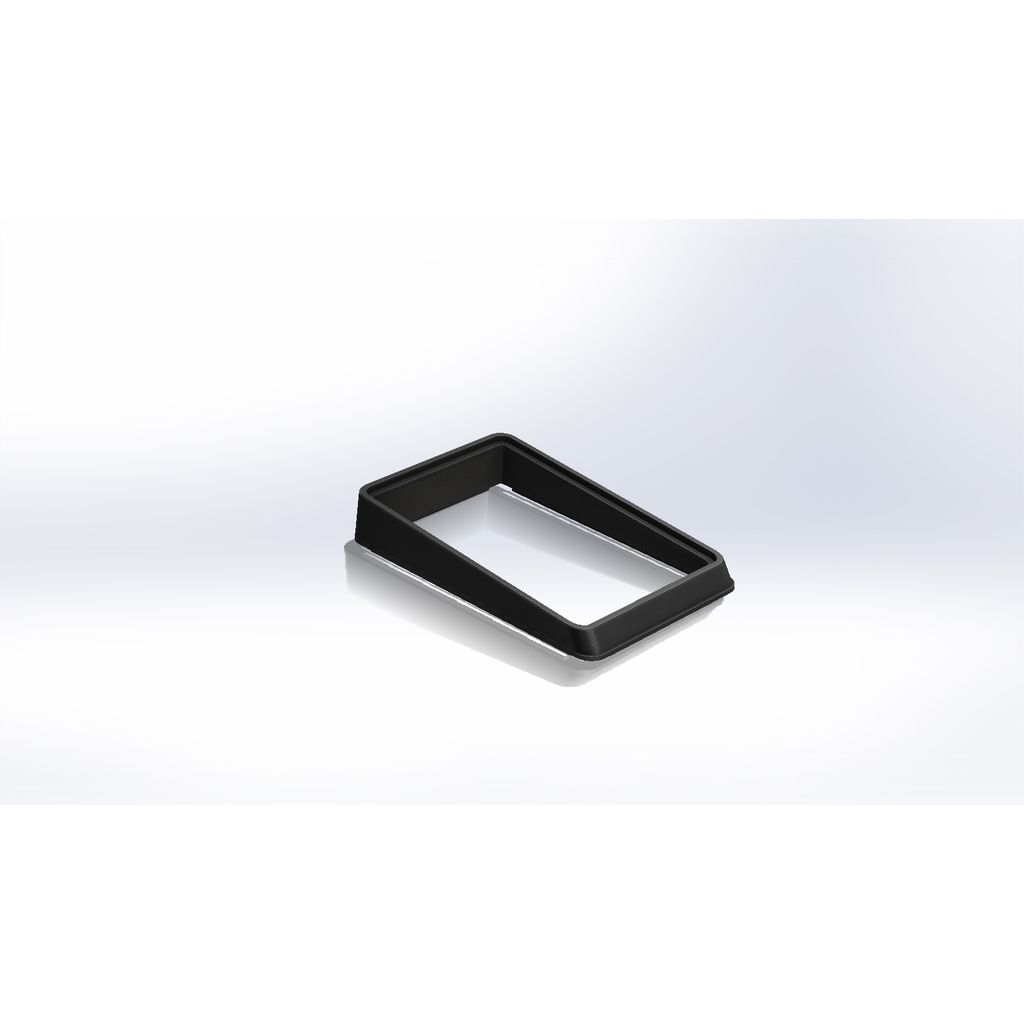

Fog Light Replacement Frame
Fog Light Replacement Frame design listed for 1995–2004 Volvo V40. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- V40
- Year range
- 1995–2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Si se te rompió el vidrio del faro rompeniebla del Volvo V40 MK1, sabés lo difícil (o imposible) que es conseguir solo el vidrio por separado. Me pasó lo mismo, así que diseñé este marco de reemplazo en ABS, que copia la inclinación del vidrio original.
En lugar del vidrio curvo, podés colocar un vidrio plano o acrílico transparente. Si bien no distribuye la luz de forma tan suave como el original, permite salvar el faro y seguir usándolo sin tener que reemplazar toda la unidad.
Recomiendo imprimir en ABS por su resistencia al calor y a la intemperie.
🎁 Si este diseño te fue útil, considerá apoyarme invitándome una cerveza 🍺 en: https://buymeacoffee.com/carlosheil4
-------
Fog Light Replacement Frame – Volvo V40 MK1
If your Volvo V40 MK1 fog light glass broke (like mine did), you know it’s nearly impossible to find just the glass. That’s why I designed this replacement frame, printed in ABS, that matches the original glass angle.
Instead of the curved OEM glass, you can install flat glass or clear acrylic. While it doesn’t diffuse light quite as well, it’s a practical fix that saves the fog light and keeps it functional.
I recommend printing this part in ABS for heat and weather resistance.
🎁 If this design helped you out, feel free to support me by buying me a beer 🍺 here: https://buymeacoffee.com/carlosheil4
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
