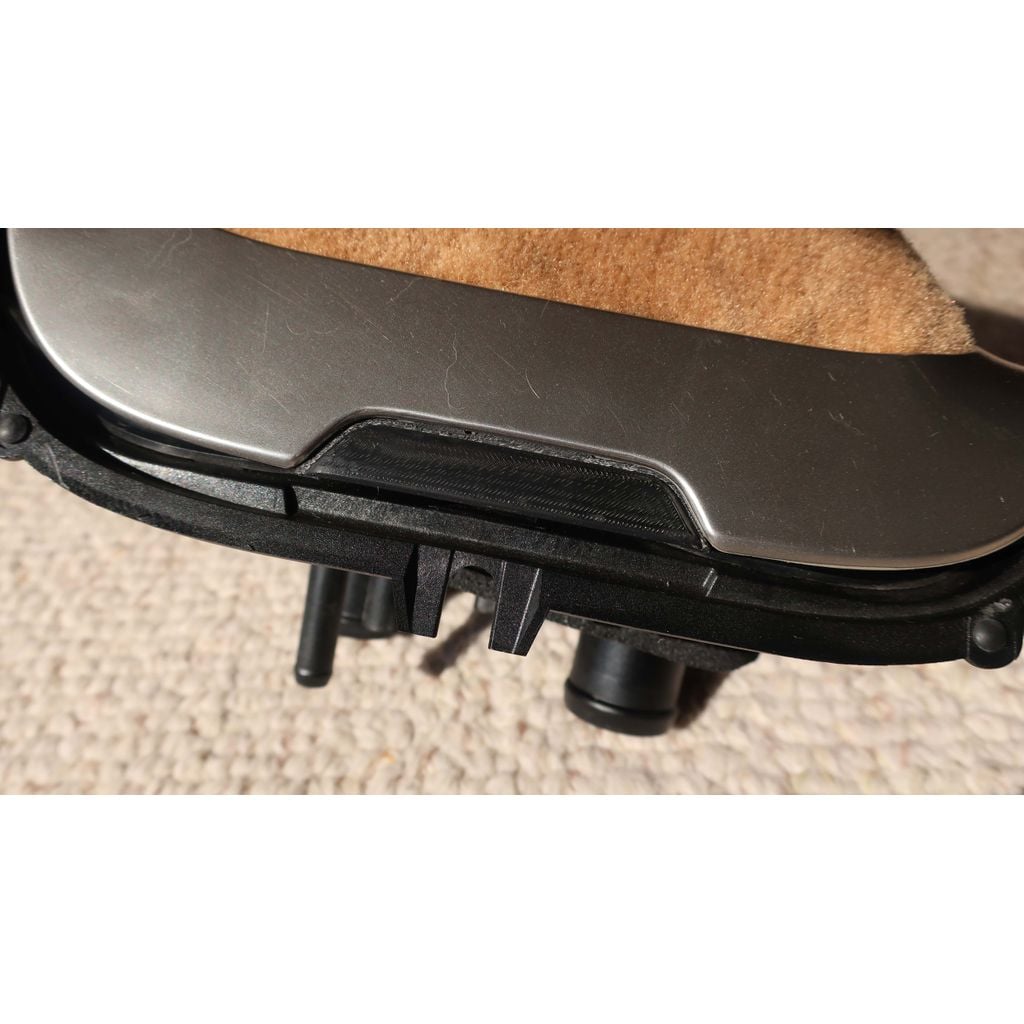

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Oil Door Latch
Oil Door Latch design listed for 2005 Porsche Cayman. Listed category: other. Verify dimensions, fitment and material suitability before printing.
- Make
- Porsche
- Model
- Cayman
- Year range
- 2005
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Installation instructions:
1) It is not necessary to remove the door, but may be easier to work on if it is removed from the car. Move the carpet to expose the lower hinges. Carefully squeeze-in the tabs on both sides, and the door should move forward for removal.
2) Pry the satin aluminum trim piece with the carpet inset from the front of the door. It appears to be held on with glue. Warming the door and glue slightly with a hair dryer may soften the glue, but I was able to carefully pry it free without heat.
3) Remove the pin through the latch and the tension spring.
4) Install the new latch and put everything back together in reverse order. High temperature hot glue or epoxy may be used to install the trim with the new latch back on the door.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
