Design by Jdawg2282 · Original design · CC-BY-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

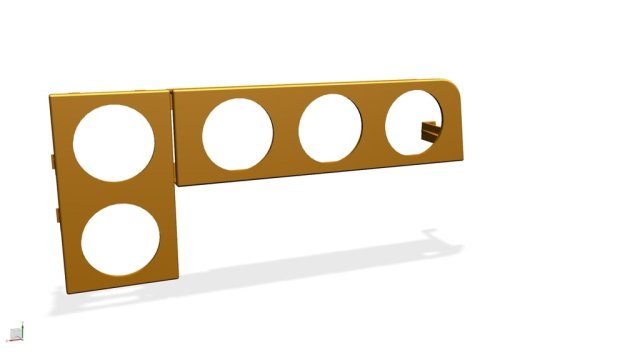

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Gauge Bezel
Gauge Bezel design listed for 1990 Volvo 240. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- 240
- Year range
- 1990
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I used a clear PETG. Post processing included sanding(320 grit), bondo, primer, SEM black trim paint.
For single or double bezel, print PETG standing up for strength in clips.
For triple bezel, print PETG face down against bed.
Tree supports worked well for me.
Back ring is used to slip on the back of gauge that doesn't have a twist on ring for securing in place, the file makes a 51mm ring printed with TPU to be snug on a 52mm gauge. Scale if too large or small.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Brand: Creality
Printer: Ender 3
Rafts: No Supports: Yes Resolution: .2 Filament: Overture PETG, TPU Clear
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
