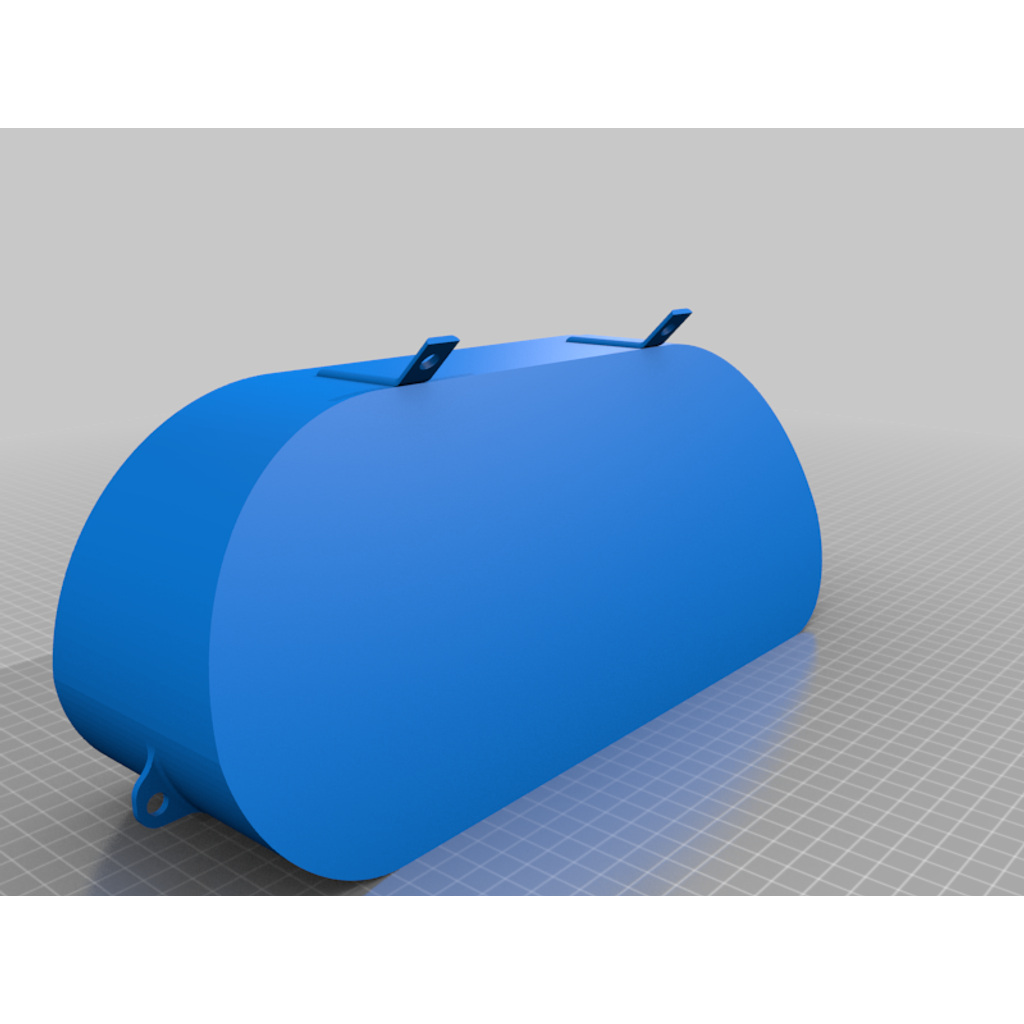

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Instrument Cluster Blank Panel
Instrument Cluster Blank Panel design listed for 2007 Proton Jumbuck. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Proton
- Model
- Jumbuck
- Year range
- 2007
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I required a dash cluster to replace my stock one due to doing an EV Conversion on my vehicle, however this meant that I needed to fit all new gauges.
The main reason for doing this was that I wasn't keeping the stock transaxle in the vehicle due to using a full Nissan Leaf pack, meaning i lost the Speedometer Cable to drive the factory dash (Everything else could be repurposed with some fancy wiring)
So I decided to throw out the factory dash and go with a whole new one, so about 12 hours of careful measuring and tuning in Fusion 360 and I came up with this, you may need to slice it up a tad in Meshmixer unless you have a gargantuan print bed or want to get tricky with angles and supports.
Basically this is a blank slate for you to add your own holes to with any software that can edit STL files such as Meshmixer.
