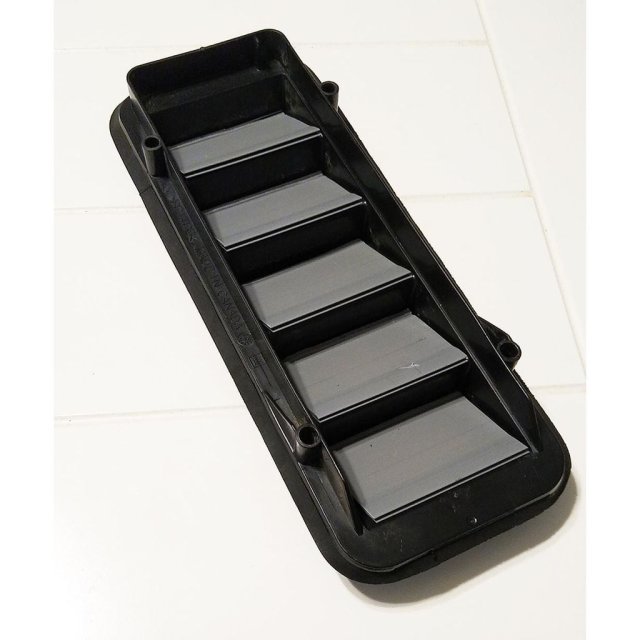

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Cab Vent Cover
Cab Vent Cover design listed for 1999–2021 Chevrolet/GMC Sierra/Silverado. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet/GMC
- Model
- Sierra/Silverado
- Year range
- 1999–2021
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
If you've seen the back of the vent, there is a frame that has what looks like four mounting holes, and it seems like the engineers originally thought, "Hey, we'll add a cover to this so that if the flaps ever fall off, at least there's not a gaping 3x9 inch waterfall waiting to happen", but someone else thought that the extra $2 per truck was a waste of money. At any rate...
I've designed these covers to fit over the standard GM cab vent assembly. As far as I can tell, the same vents are used on trucks from 1999 to 2021, so there's a good chance this will work for you.
There are three files: one single piece cover for those with larger beds, and a two-piece cover for those with smaller beds. I would glue the two pieces together at the overlap, then attach to the vent assembly with silicone, which will act as a glue and of course a waterproof sealant. The parts fit snugly to each other, and to the vent assembly.
In my case, I chose not to buy new vents at $20 each, I picked up a door sweep from Lowe's, cut the vinyl into the right size, and used contact cement to replace the flaps. Cost about $12 total.
I would suggest using PETG, as PLA doesn't seem to hold up well to heat and moisture outside.
Print them flat side down and you don't need supports.
March 22, 2021: one final note on assembly - the thickness of the current cover makes it a pretty snug fit when pushing the vents back up from the bottom between the cab and bed. In my case, it was actually a benefit, because I was able to move the vents into place from below and it stayed put while I got back inside the truck and maneuvered it into final position and click it in. I may upload a slightly thinner model.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
