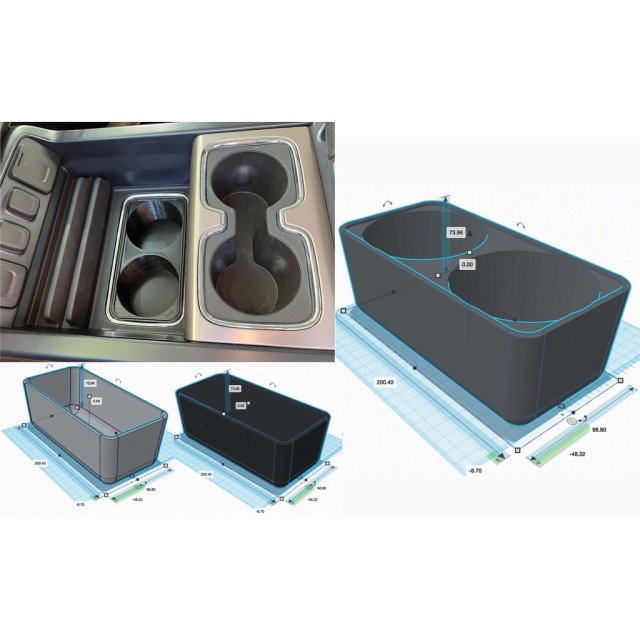

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Center Console Storage Trays
Center Console Storage Trays design listed for 2018 GMC Sierra HD. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- GMC
- Model
- Sierra HD
- Year range
- 2018
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
NO LONGER!
I am a novice Tinkercad user. I have no ability to use a substantial CAD software so for me I feel like I have conquered the world and solved a very important problem LOL!
It is made to go into the rubber sleeve so it can be easily removed or reinstalled without having OEM car parts lying around. It has a perfect fit so I am pleased with that.
Here is what this includes:
1. Tray with LARGE Cup Holders
2. Empty Tray/ Shell for Future Projects (you can modify it)
3. A fully Filled Tray that you can add whatever holes or storage compartments you want to using Tinkercad or whatever you use. Drop a hole in for a cell phone. Put mounting holes for a device. You're only limited by your imagination
Here are the Tinkercad Links:
Large Cupholders
https://www.tinkercad.com/things/7DEA2mneg4f
Empty Tray for Tinkering With
https://www.tinkercad.com/things/4RBSmibY6oC
Blank or Filled Tray for Tinkering With
https://www.tinkercad.com/things/9IDa1wHfV8k
Truthfully this is very bloated and probably could be done much better in a better design software. But given I am a hobbyist Tinkercad seems to do the job but I think this project reached it's limits as it bogs down from the amount of elements in this.
I printed with 15% Grid Pattern Fill with No Supports PLA at 210C/60C
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
