Design by OGXDev360 · Original design · CC-BY-SA-4.0 · Source details. Indexed via 3DCarParts. Source text and images remain credited to their creators; no modified design files supplied.

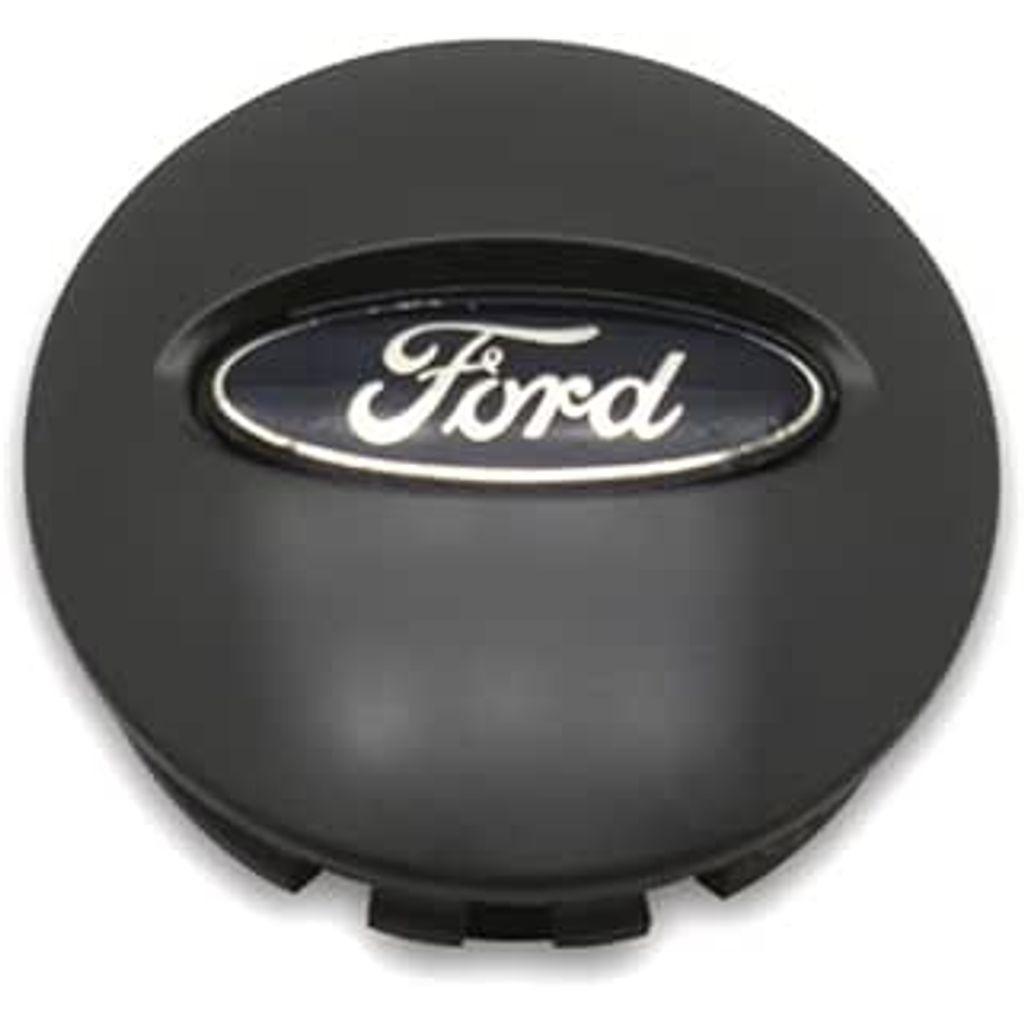

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Center Hub Cap Dust Cover
Center Hub Cap Dust Cover design listed for 2002–2016 Ford Ranger. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Ranger
- Year range
- 2002–2016
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Printed with Cura v5.9
Fitment from OEM Ford Part
2007-2015 EDGE,
2008-2012 ESCAPE,
2002-2016 EXPLORER,
2009-2015 FLEX,
2004-2007 FREESTAR,
2006-2009 FUSION,
2002-2011 RANGER,
2010-2015 TAURUS,
2009-2016 MKS,
2010-2018 MKT,
2010-2017 MKX,
2010-2016 MKZ,
2013-2015 Avalon,
2011-2016 Camry,
2008-2015 Highlander,
2009-2015 Matrix,
2011-2017 Sienna.
Part number-
BB53-1A096-RA, 3F23-1A096-DC, 3L24-1A096-AA, 5L24-1A096-AA, 5L2Z-1130-BA, 6F23-1A096-BA, 6L24-1A096-AA, 9L8J-1A096-AA, 9L8Z-1130-A, 8A53-1A096-AB, 8A5Z-1130-C, 42603-07010
Specifications-
Material: premium PLA plastic
Size-
Outside diameter: 65.4mm(approx 2.57 in), Backside clip to clip: 58.4mm(approx 2.3 in), Clip Length: 15.2mm(approx 0.59 in), Total height: 17.2mm(approx 0.68in), With 8 clip
Color: Black
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
