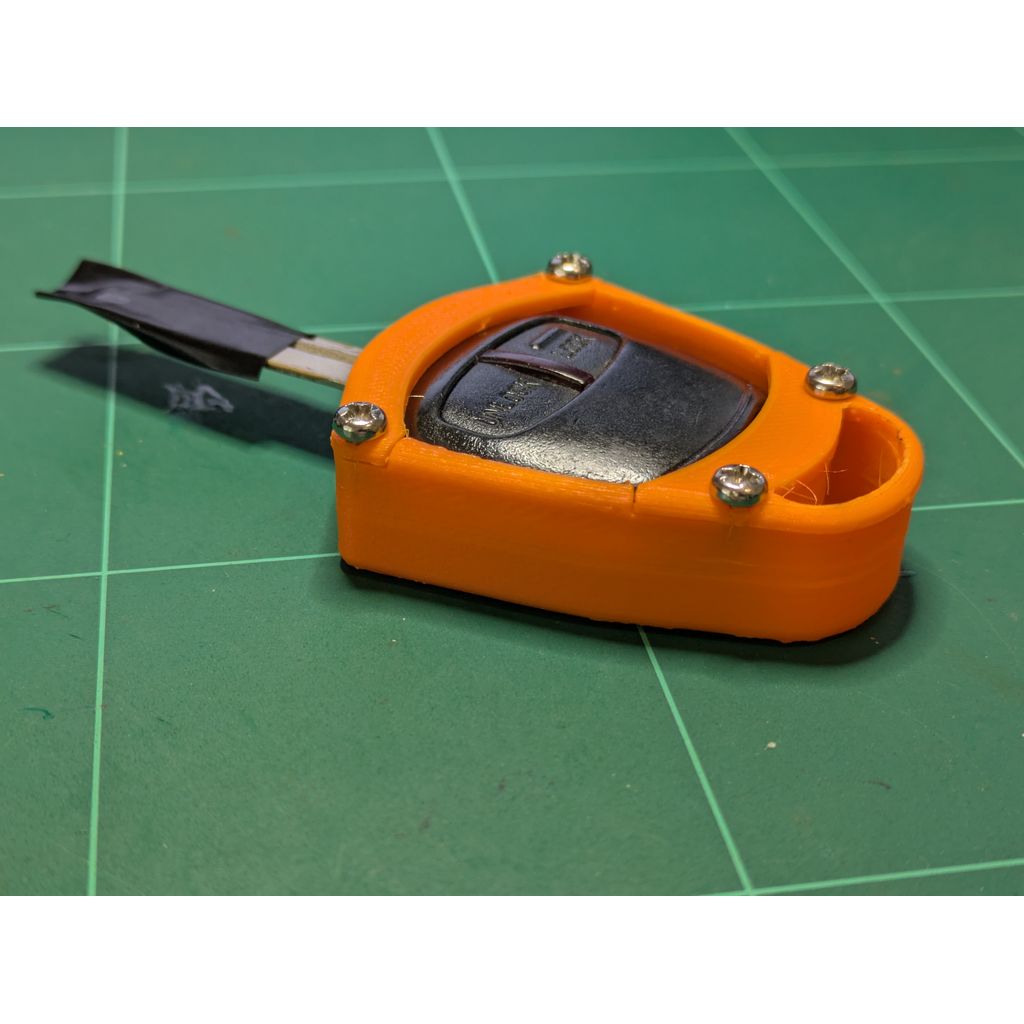

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
2-button remote key housing
2-button remote key housing design listed for 2005–2015 Mitsubishi Outlander. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mitsubishi
- Model
- Outlander
- Year range
- 2005–2015
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
My key ended up breaking off my keyring. A common failure that happened to both keys. Then the casing near the blade started to fail as well. The entire assembly then came apart after the screw broke through the plastic. My options were running out after holding it all together with electrical tape.
Now I could have probably bought a cheap replacement housing online, but they're pretty average if you believe the reviews. Get one from a dealer? I'd be shelling out hundreds of dollars! Besides, there's no fun in either of those options, so I designed a housing that holds the existing key in place, feels good in the hand, and is able to hold together even the most damaged key... like mine! I think it looks pretty tough too :)
The key slides into a hole in the front of the "Key Holder Bottom.stl", and it secured by the two "Top Lower" and "Top Upper" components to hold it firmly in place. The "Top Bottom" stops the key from coming out of the housing, and the "Top Upper" holds the top of the key firmly, holding the blade in place when that section of the key is either weak or failing. If it hasn't failed yet, this will help to prevent that.
4 x M3x6mm screws hold it all together. I'd recommend pre-screwing each prior to putting the key in and the covers on top. Just so you know the threading is right.
100% infill. Supports if you like smoother curves on the base, but you probably don't need it.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
