Coffee Cup Holder Insert
Coffee Cup Holder Insert design listed for 2012–2017 Hyundai i30. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Hyundai
- Model
- i30
- Year range
- 2012–2017
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Sorry for shouting, I just don't want you to think 'Yay, great idea' and then end up spilling hot drink everywhere :D
________________________________________________________________________
Update: 14 Jol 18 - New shortened version uploaded. -2.5 mm off the base to accommodate the rubber mat and -2.5 mm from the top to stop it sitting proud.
Print and post! Thanks
________________________________________________________________________
Update: 13 Jul 18 - OK, so I uploaded the pictures BEFORE I removed all the stringing - it's probably going to stay stringy to be honest!
It's printed in PLA - and in a hot car, or with a freshly brewed cup of coffee pressed against it - it's probably going to bend anyway . . . .
Reworking of the stl will only lake me a minute, when I get round to it.
The pictures show how much it protrudes, but it also shows the difference of how well the cup sits with the holder being in and out.
Enjoy
P.S. To view any image at larger size, right click the image and open in another window/tab.
Edit the address and change the end of the address (before the .jpg for pictures) from:
"preview_featured" to "display_large"
(minus the "quotes")
Thanks DrLex https://www.thingiverse.com/DrLex/about for that tip . . . .
________________________________________________________________________
Update: 10 Jul 18 - Printed and it fits! It's better without the bottom rubber mat installed in the cup holders, so I'll adjust to remove the mat thickness from the bottom of the model; once done it we sit really snugly.
Also, it's slightly proud of the upper surface of the console, I'll nip a bit away on top too.
Photo will be uploaded as soon as I've removed all the stringing . . . . . . damned retraction settings STILL not bob-on.
________________________________________________________________________
I have a Hyundai i30 2012-2017 with the two cupholders in the centre console, unfortunately the tall 16 fl oz coffee cups wobble all over the shop and are not secure in any way.
I searched the inter-webs for a suitable holder with the adjustable grip this (hopefully) offers, but turned up nothing.

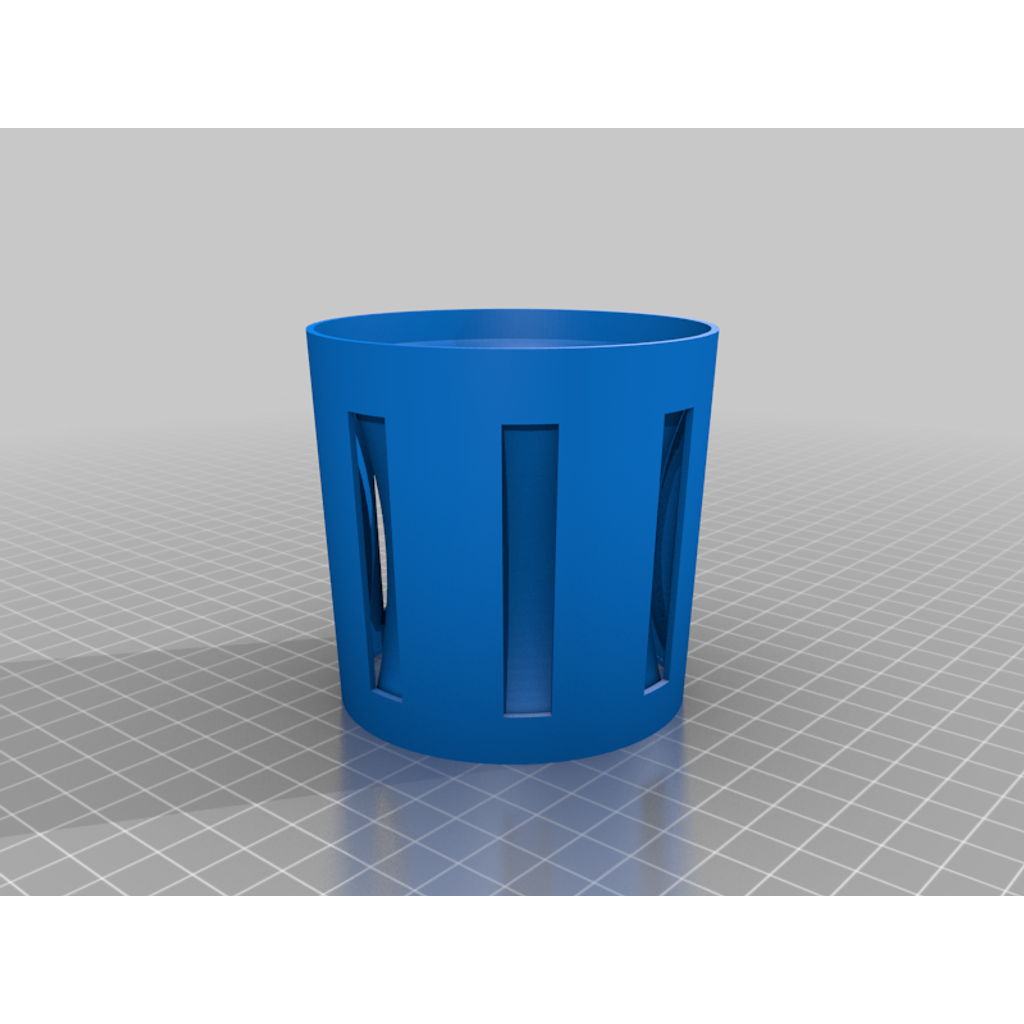

So here is my attempt. It fits snugly in the existing console cutout (approx 75mm at the base, 83mm at the top and 79mm deep) - and the flexible fingers 'should' grip the cup and hold it snugly.
I say should because an initial print went quite badly, details are in the 'Print Settings' Misc Notes section - read it there.
I'll update and remove the 'WIP' flag when it's finally printed out properly.
(NOTE: Paper cup is included for virtual test fitting and is not designed to be printed).
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
