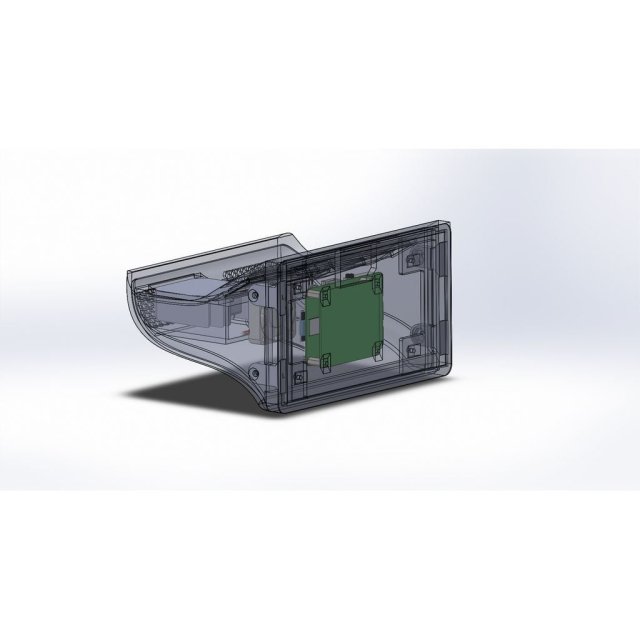

Overhead touchscreen pod
Overhead touchscreen pod design listed for 1999–2007 Ford F-Series Super Duty. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- F-Series Super Duty
- Year range
- 1999–2007
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The hole of on the top side lined up with an already existing hole centred in the crossmember in the roof. I just use a threaded insert (nutsert) to provide a 1/4 20 threaded mounting point. The vents in the back channel air over the DC/DC converter shown in the videos.
The 4 mounting ears should be printed laying down for the most strength and have provisions for flanged nuts (installed backwards) and can be held in place with a dot of silicone. Flat head screws sit flush with the outside of the enclosure, however it is very easy to split the case if overtightened.
These are the black oxide screws and nuts I used:
https://www.mcmaster.com/#96640a166/=1cnjh7d
https://www.mcmaster.com/#93083a102/=1cnjhii
The videos showing the install are here:
https://www.youtube.com/watch?v=Puk_pzMGd7c
This video outlines the hardware and how I installed it.
https://www.youtube.com/watch?v=jFXxtxoi_pc
This video shows how it's wired up and the code to switch cameras and brightness.
https://www.youtube.com/watch?v=lpzkHvQA-t8
And lastly, this video shows the 3D printed camera pods and the Display pod.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
