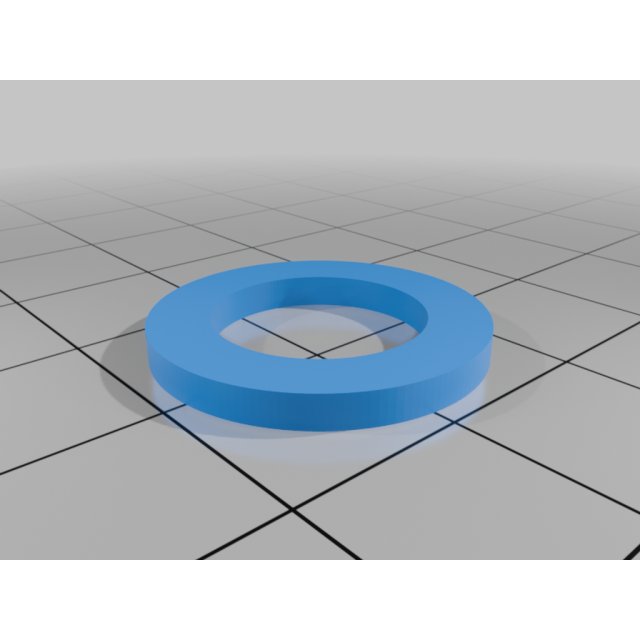

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Trunk Strut Bushing
Trunk Strut Bushing design listed for 1996–2002 Toyota 4Runner. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- 4Runner
- Year range
- 1996–2002
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I recommend using PETG just so it doesn't deform in hot environments. It printed in about 18minutes on a Bambu P1S and overall cost is about 15 cents in filament.
For each side you'll need:
1x TopBushingInner
1x TopBushingOuter (the outer one is thicker and goes on the side facing into the trunk)
Either 2x MainBTMBushings1-2Hole or 2x PrototypeBTMBushing7-16Hole.
The main difference is that the prototype has tighter tolerances by 1/16inch however, I haven't been able to check if it would work. The main version is tested and work.
In total you'll need
For top sides of the struts:
2x TopBushingInner
2x TopBushingOuter
For bottom side of the struts:
4x MainBTMBushings1-2Hole or 4x PrototypeBTMBushing7-16Hole
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
