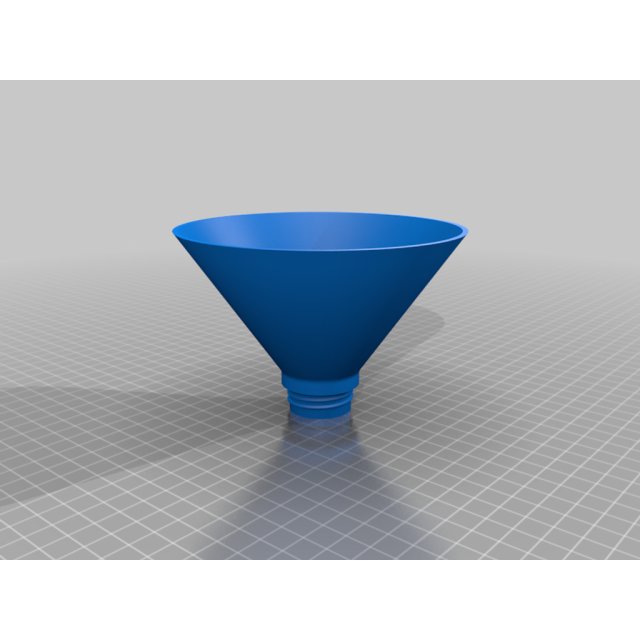

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Threaded Oil Filler Funnel
Threaded Oil Filler Funnel design listed for 2010 Honda CR-V. Listed category: specialty-tools. Verify dimensions, fitment and material suitability before printing.
- Make
- Honda
- Model
- CR-V
- Year range
- 2010
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This design is ~5 inches wide and ~3.5 inches tall, and is intended to be printed upside down as shown in the photos.
*Note:* If the location of the oil filler port on your Honda/Acura can only accommodate a smaller funnel, you should be able to adjust your slicer settings to easily print a smaller funnel - just shift the model's location on the Z-axis down (placing the larger portion below the build plate) so the result prints only the portion of the funnel you want.
*Printing tips*
* MOST IMPORTANT - Print *UPSIDE DOWN* as shown in the photo of the finished print. The original model is upright, so you will need to rotate the model in your slicer so the funnel portion sits on the build plate.
* I chose a layer height of 0.12mm (0.1mm should work too) to make sure the threads printed smoothly.
* Print with 3 walls if using a 0.4mm nozzle. The funnel portion is 2.4mm thick, so this creates a perfectly solid funnel with no infill (0.4mm * 3 for outer + 0.4mm * 3 for inner = 2.4mm).
* I *highly* suggest printing a *brim* on the outside and inside (I chose 10mm) to make sure the model adheres to the build plate.
* The example in the photos was printed in PETG, but this model should print just as well with PLA.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
