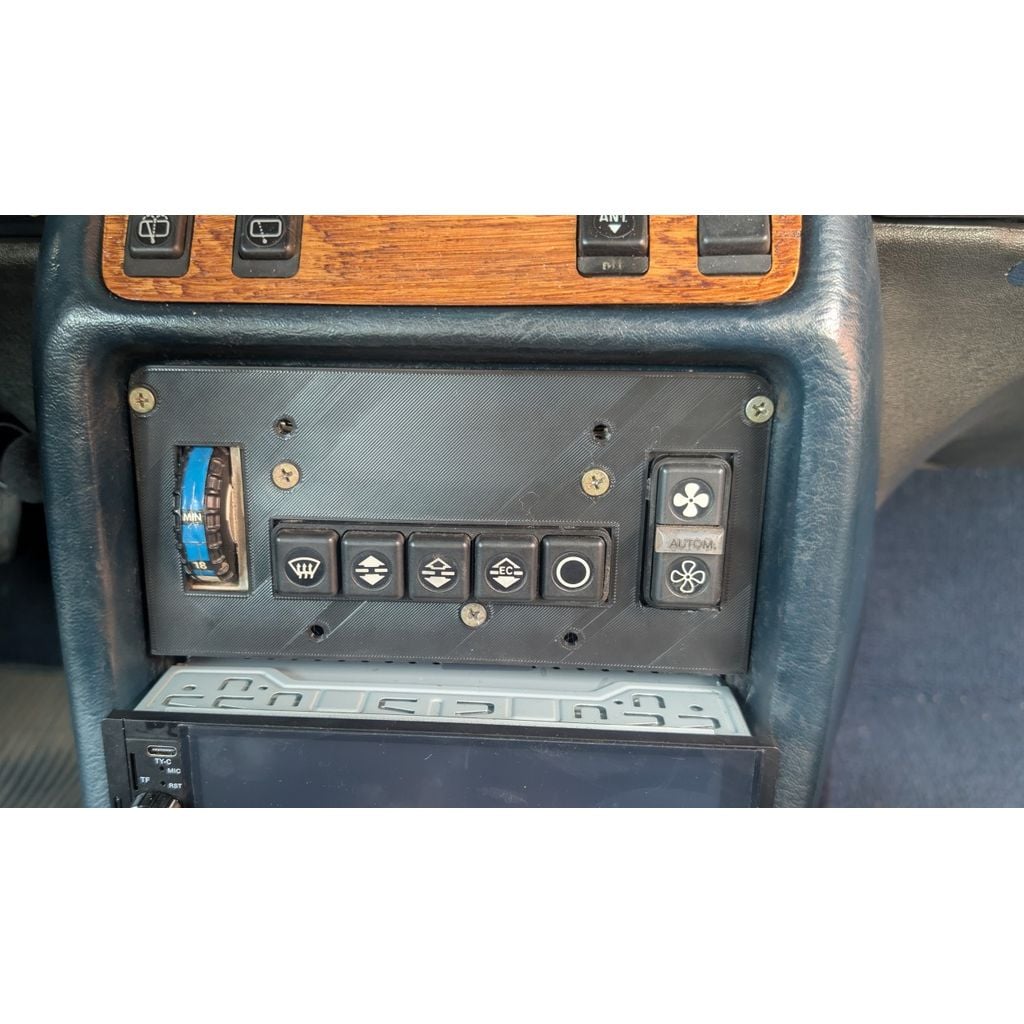

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Mercedes Automatic Climate Control Bracket
Mercedes Automatic Climate Control Bracket design listed for 1976–1986 Mercedes-Benz W123. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- W123
- Year range
- 1976–1986
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Because of the heat of a car's interior, this will need to be printed out of either a heat-resistant filament, or annealed if printed out of PLA. I had success with bed annealing PLA at 70 degrees for 2 hours, and 80 degrees for 2 hours. I printed the part with a large brim, and annealed it while still stuck to the bed, weighed down by a bag of sand. No warpage observed. The part shrunk approximately 1.5% in the X and Y axis, and grew 1% in the Y axis.
Update 7/15: Added reinforcements to top and bottom because the original design flexed too much. Adjusted pin/screw holes for a better fit.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
