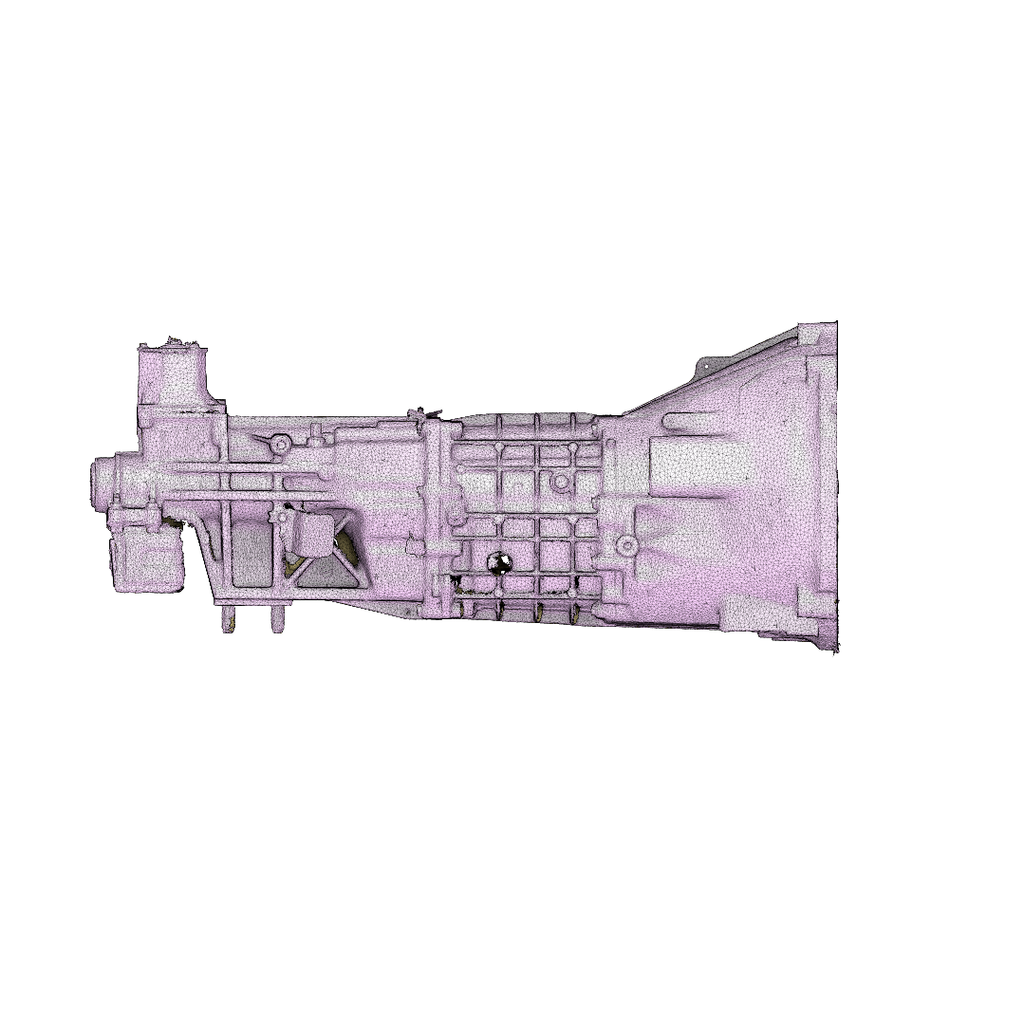

manual transmission scan
manual transmission scan design listed for 2003–2012 Mazda RX-8. Listed category: other. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- RX-8
- Year range
- 2003–2012
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
input shaft guide/clutch arm pivot point is a separate scan from transmission proper and is included.
clutch arm/throw out bearing are not included in the scan.
