Wind Deflector Action Cam Mount
Wind Deflector Action Cam Mount design listed for 1996 Porsche Boxster. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Porsche
- Model
- Boxster
- Year range
- 1996
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

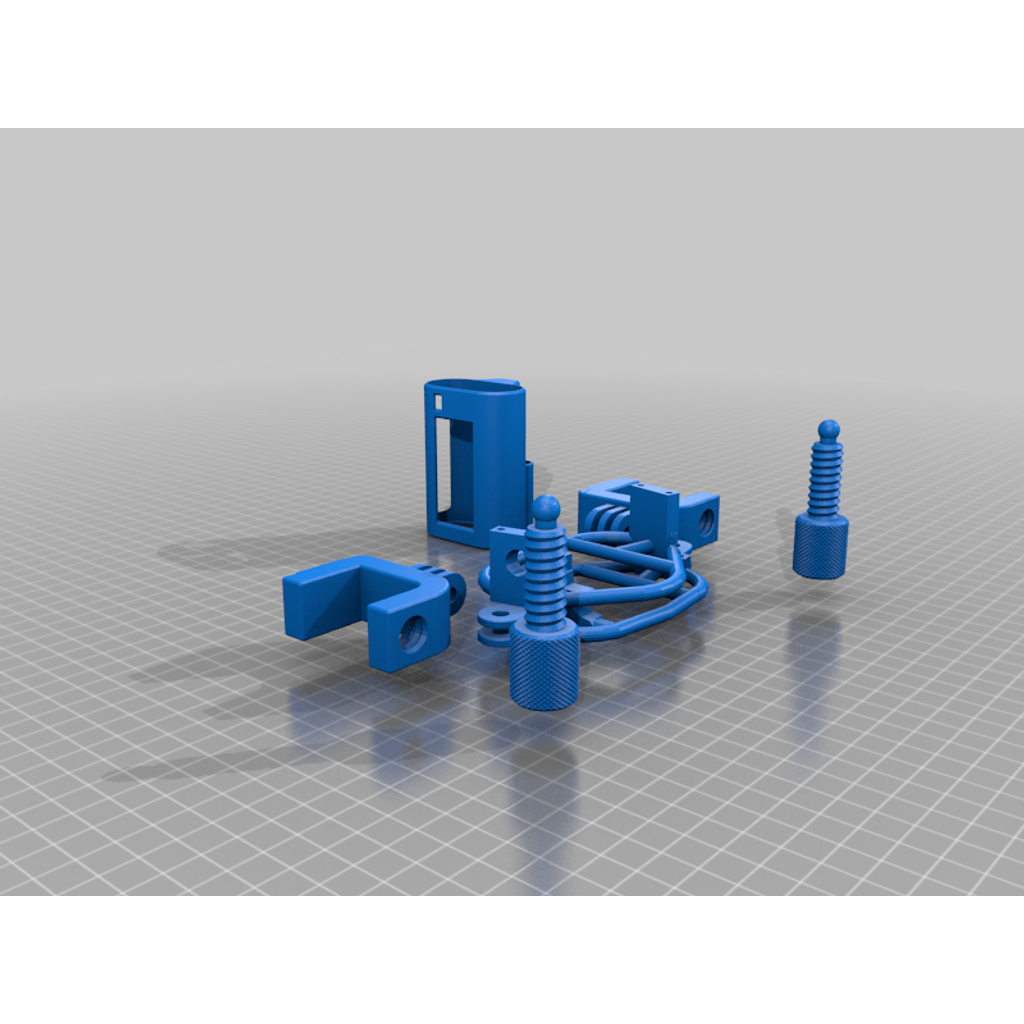

I used this https://www.thingiverse.com/thing:360411, designed by maxspongebob, for a shroud for my Action Cam HD-AS200V, then made a two-part skeleton to hold it.
I then took johann517's G-Clamp (https://www.thingiverse.com/thing:360411), and accompanying thumb screw, and shortened them to 30mm.
I printed the shroud and frame parts, and two each of the g-clamp and thumb screw. I used ABS, 3 perimeters and 15% infill, you could go higher if you prefer.
The frame parts are keyed, match up the holes and fasten with M3 screws, 12 mm I think. The shroud attaches with a 1/4"-20 screw and nut. Mmmm, maybe an inch long?
The clamps attach to the GoPro style lugs with M5 screws, 20 mm, thumb screw to the front. Clamp to the clear plastic wind deflector between the seats. It's a bit tight if the top is up!
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
