Cup Holder Riser
Cup Holder Riser design listed for 2023 BYD Atto3. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- BYD
- Model
- Atto3
- Year range
- 2023
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
This is great if you need to put your Big Boy XXL Double Gulp cup in it, but not so great for ordinary cups.
The car comes with a "riser" that can be put in one side, which allows that side to be used for normal-sized cups, but the other side is still _really_ deep.
This print is to solve that problem, by providing a pair of inserts to raise _both_ sides.
In case it's not obvious, print one of CupHolderRiserA, one of CupHolderRiserB and chuck them in the cupholder.
The two large indents in the top are just so you can hold them easily with your fingers to get them in and out.

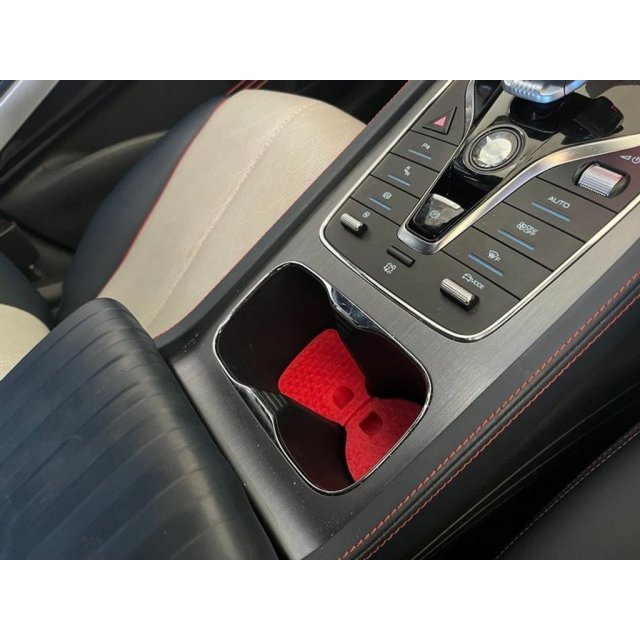

In the photos you can see the BYD original in black, and these inserts in red.
I originally planned to print the final inserts in black, but the test print I did in some spare red filament worked first time, and it matches the car's red stitching, so I ended up just going with it. The bright colour also makes it easier to find things if you accidentally dropped something in there.
If you live in a hot climate (as I do) you will probably want to print these in something like ABS that can handle high temperatures without warping as car interiors can get quite warm if you're parked out in the sun. From prior experience I have learned that PLA is not up to the task, but if you're in a cooler part of the world that might not be an issue.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
