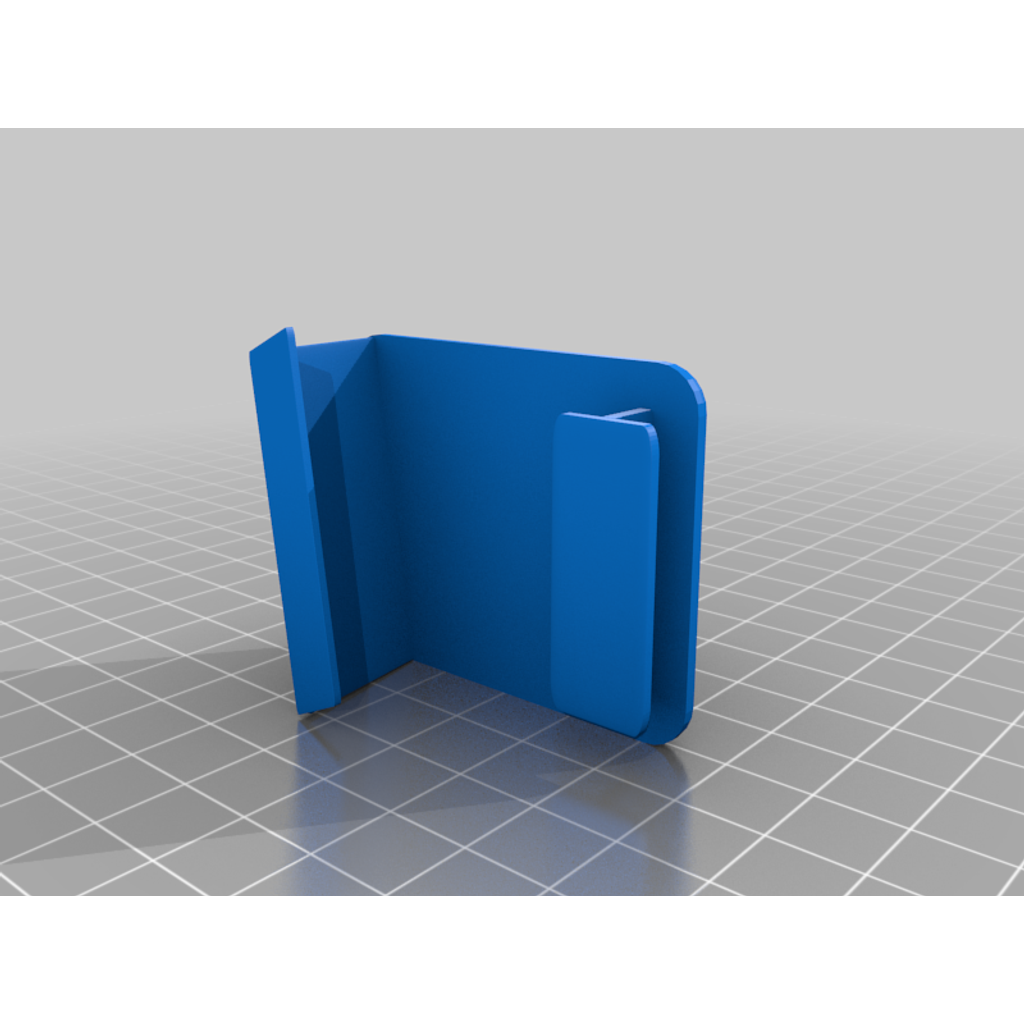

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Mobile Phone Mount RHD
Mobile Phone Mount RHD design listed for 2007–2014 Ford Mondeo. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Mondeo
- Year range
- 2007–2014
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
As I had the 'power' start button my trim was all one piece so I decided to design my first thing!
It does involve opening the dash a little but this was to stop it from sliding out, I managed to do it but pulling the start button edge trim off and gently unscrewing the 2 screws behind just enough to lean the dashboard forward slightly.
Made the base of the ball a little thicker and even though the right side (bottom when printing) of the ball didn't print perfectly it still works well.
Add a little black foam pad beneath the bottom support to stop it scratching the dash.
Printing:
***Print in ABS, the PLA went soft in the summer and drooped, ABS has been fine the past year***
Printed in Black PLA as ABS just kept warping and causing the ball to fail.
100% infill for strength
Support from buildplate
I used a raft due to the small edges slightly curling off the bed but not required.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
