Brake Piston Tool C30, S40, V50, C70 etc
Brake Piston Tool C30, S40, V50, C70 etc design listed for 2004–2012 Volvo V50. Listed category: specialty-tools. Verify dimensions, fitment and material suitability before printing.
- Make
- Volvo
- Model
- V50
- Year range
- 2004–2012
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description

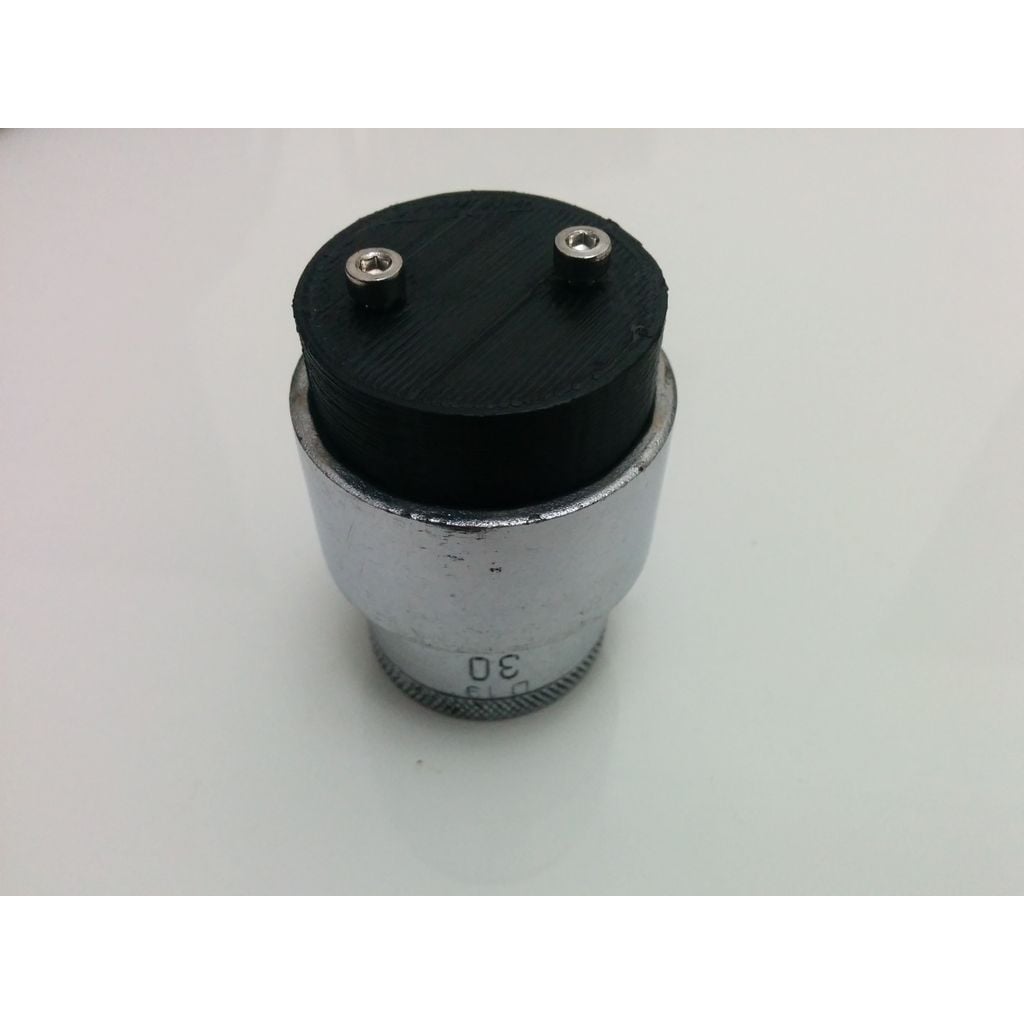

Use with a 30mm socket apply pressure (approx 20Kg / 200N required) while turning clockwise to get the caliper to retract .
Requires two M3 hex head bolts for the pins (approx 20mm long). Screw them in, but leave them a few mm proud for a better fit.
I printed in PLA @ 30% infill.
Inspired by [thing:216291](https://www.thingiverse.com/thing:216291).
