Battery Vent Tube
Battery Vent Tube design listed for 2004 Chevrolet Corvette. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- Corvette
- Year range
- 2004
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Broke your battery vent tube? This 3D printable replacement part is designed as a direct-fit alternative to the OEM elbow, perfect for vented lead-acid battery setups in vehicles, RVs, or power systems.
Features: Modeled to match the original for a snug, leak-free fit.
Ideal for routing battery gas vents safely outside the vehicle or enclosure.
Prints on its side for maximum strength and durability, with minimal support needed.
Print Details: Nozzle: 0.25mm
Layer
Height: 0.12mm
Material: PETG – chosen for its excellent chemical resistance and structural strength.
Prints clean and solid with great dimensional accuracy.
Fit is tight and secure — just like the original.

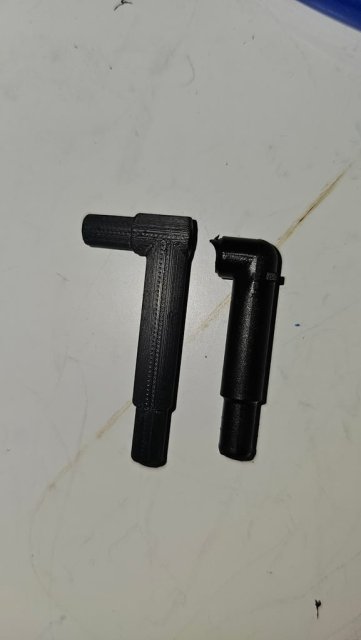

Shown here next to the broken OEM part from C6 Corvette Z06— this version fits perfectly and installs easily. A great save when replacements are hard to find or overpriced.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
