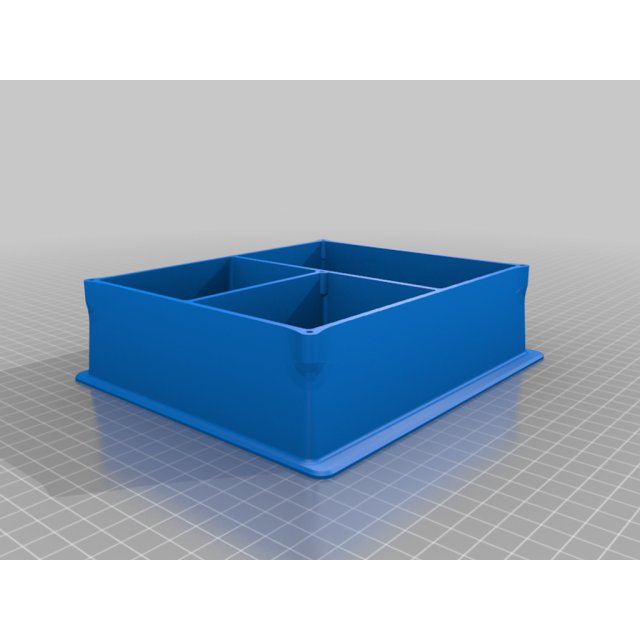

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Center Console Tray
Center Console Tray design listed for 2021 Tesla Model 3/Y. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Tesla
- Model
- Model 3/Y
- Year range
- 2021
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Wanting to avoid tons of support material (and the rough undersides it would cause), I made this in two pieces and attached the bottom with a few #4-40 countersunk screws. Any screw length up to 1/2" will fit, and the holes in the bottom part are countersunk. It could have benefited from one more screw on each side, but a drop or two of superglue on each side instead, worked just as well.
I printed mine solid (5 vertical shells) for strength, but I think that was overkill. 2 or 3 vertical shells would be plenty strong, and print a little faster.
If I were printing another one, I might make it slightly shallower, and possibly a few mm shorter front-to-back, but this one is pretty darn good, IMO.
Note: The center screw hole is slightly off center, so the bottom and top go together only one way. They are oriented correctly in the stl files, and both are upside down, but put the center screw in first, just in case. Worst case, you have to spin the bottom around 180 degrees after that first screw.
ALSO PLEASE NOTE: I'm told that this 2021 design is 5mm too wide for the 2025 Model Y. I don't go out and remeasure the new cars every year.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
