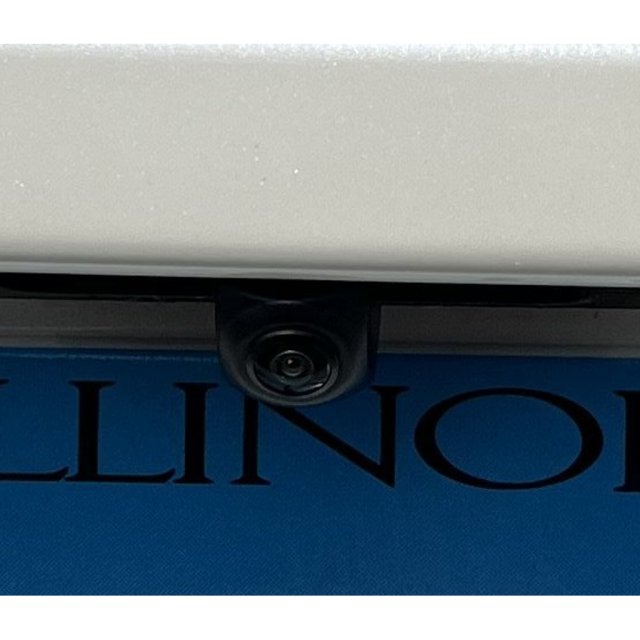

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Rearview Camera Bracket
Rearview Camera Bracket design listed for 2011–2016 Honda CR-Z. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Honda
- Model
- CR-Z
- Year range
- 2011–2016
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
(Model has been updated as of 8/17/25. Print on the rear flat surface. The model will be slanted, yet requiring less support and resulting in a higher durability. I have added small ribs next to the camera to further increase durability. )
Default is '30D'. 30 Degrees.
Print with 5 walls, increase that if raising to a steeper degree. 40 degrees requires 7 walls. Print with hybrid tree supports, painting support on the screw holes on the lower face. Supports on the pop-clip holes is entirely optional. Near-zero cleanup work required.
Print on the flat back surface. All other orientations are inferior.
This is a copied version of the OEM rearview camera bracket for the CR-Z. Minor changes made to allow for easier printing.
I intend for this to be used with a 24mmx24mmx30mm style camera. My camera was approximately 30mm long (T'eyes) however, shorter cameras may still work. Mounting is utilizing the two screws. I think this may be a universal mounting style adopted by most rearview cameras, including the OEM rearview camera. All CR-Z bumpers have the cutout to use it. Use a pop clip to install. The latest model has an alignment tooth (2026:"and a rounded feature") that actually clicks into place in the non-popclip hole. It works quite well.
Provide feedback! I will take your feedback to modify the model.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
