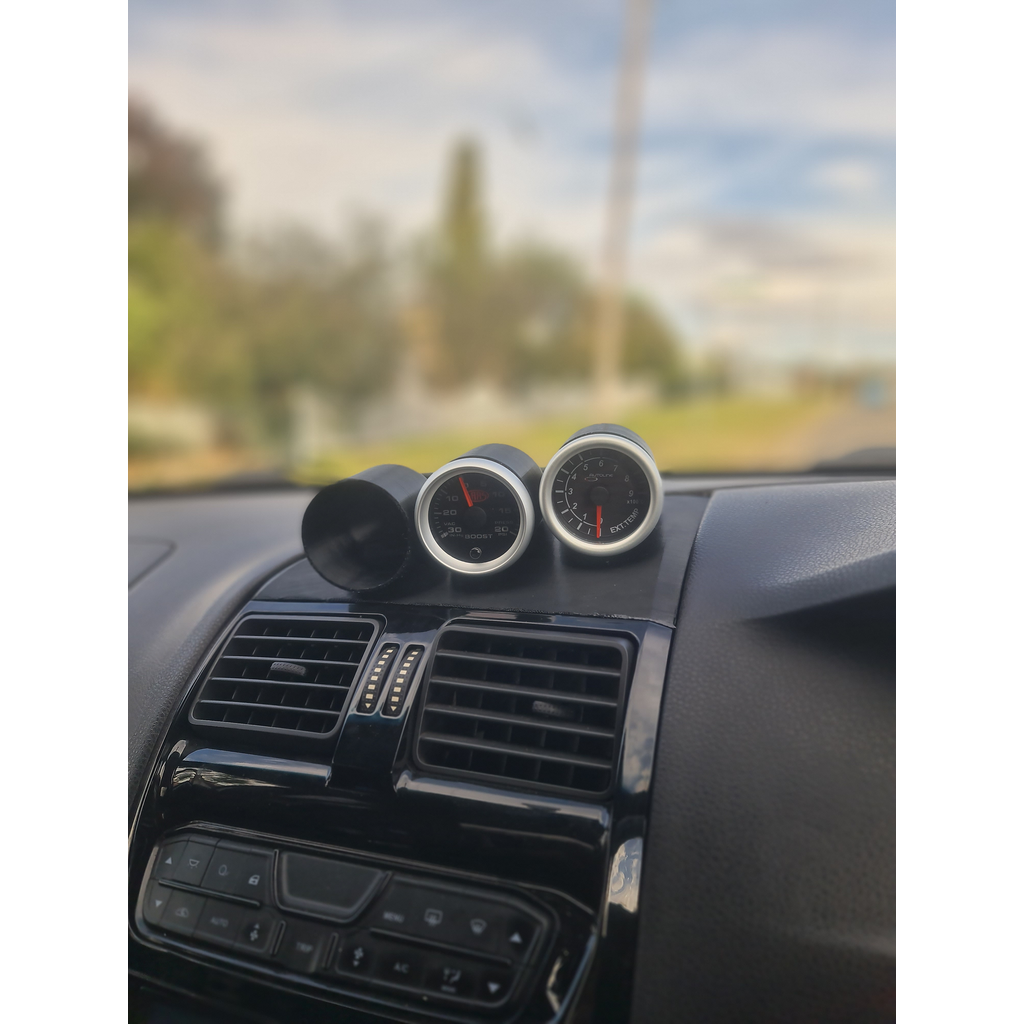

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Triple Gauge Pod Dash Triangle
Triple Gauge Pod Dash Triangle design listed for 2002–2016 Ford Falcon. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Falcon
- Year range
- 2002–2016
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Fits above ICC/radio unit. Fits standard 52mm gauges. Secures with original mounting clip (only top most clip due to interference with third gauge pod)
Best printed in uploaded orientation with gauge pods perpendicular to print surface. Prints as single piece. Supports required (recommend tree supports)
Multiple variants included, see below for details of the different options
File Variant Details:
Mk1 Final: Has been updated to improve fitment, may be too tight depending on printer accuracy and tolerances in the gauges you use. Test print provided to check fitment. If it is too tight of a fit, please use the 53mmID file.
Mk1 53mmID: My first iteration using measurements based on other generic gauge pods. Has 53mmID pods which will allow for more clearance, although a layer or two of electrical tape may be required to secure gauges. Test print also included, but fitment should not be an issue for this variant unless your printers settings are way off.
Additional files planned for different gauge pod angles. and variants with only 2 gauges. Any feedback is appreciated.
Materials:
OEM Material: ABS+PC
Recommended materials: PETG/ASA (ABS may be used, but ASA recommended for UV resistance)
Looking for the stock triangle? Find it here: https://www.thingiverse.com/thing:7317146
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
