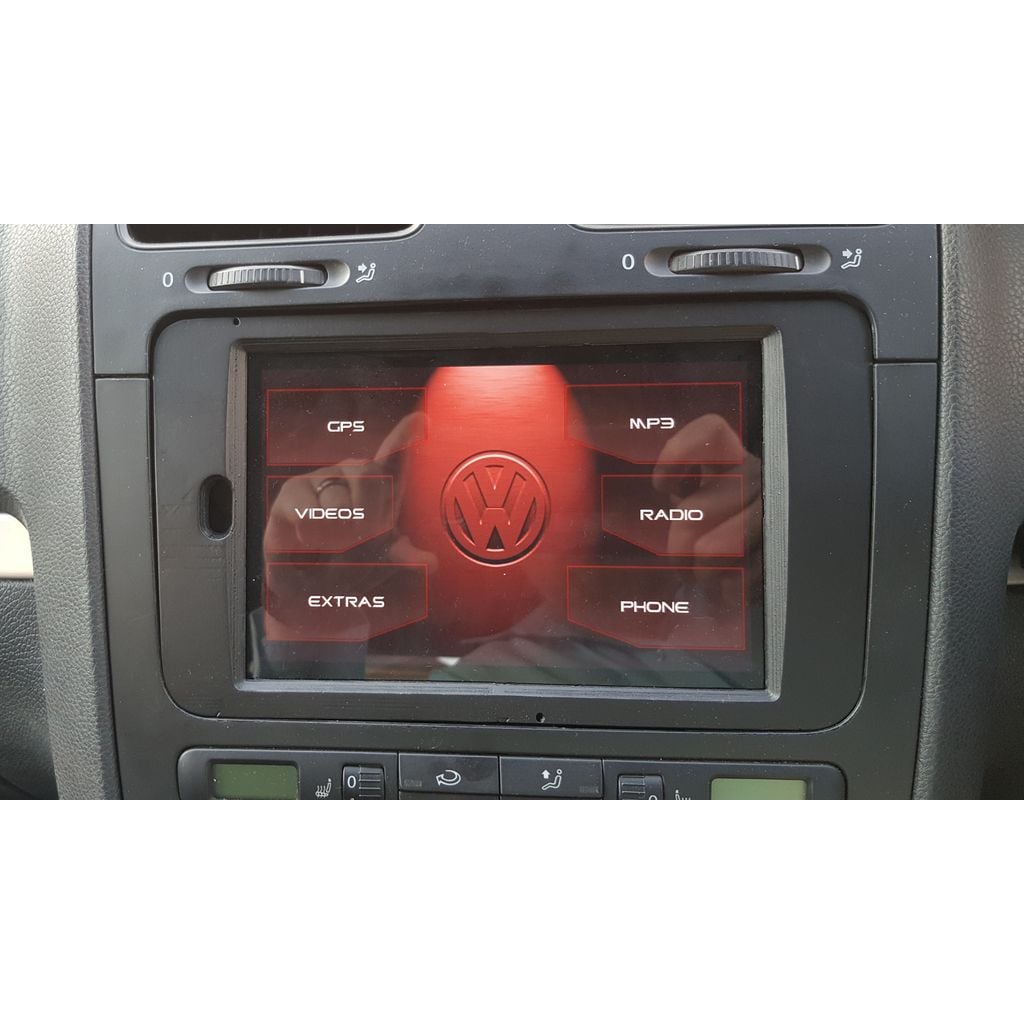

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
In Dash Tablet (Nexus 7)
In Dash Tablet (Nexus 7) design listed for 1974 Volkswagen Golf. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Volkswagen
- Model
- Golf
- Year range
- 1974
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Designed as full bracket with slot on the side for removal of tablet. Also as separate part that can be glued to each other for printers that cannot handle any overhang.
***NOTE*** : this is an in-dashboard replacement for the Volkswagen RCD 3xx or RCD 5xx radio. _This is still a work in process_.
Part of Project Bragi (https://www.facebook.com/ProjectBragi)
**UPDATE - 20 Aug 2014** : First version. Possible reversed surfaces. Please check before printing
**UPDATE - 3 Feb 2015** : Major changes have been made to the bracket.
*Please note* : Check the dates on the files when downloading. Have also uploade the SketchUp if you want to make changes yourself.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
My parts where printed in ABS. ABS was selected for heat resistance (the sun) and acetone smoothing.
Front parts where printed at a layer height of 0.1mm with a 0.3mm nozzle.
Back parts where printed at a layer height of 0.2mm with a 0.3mm nozzle. Supports were added.
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
