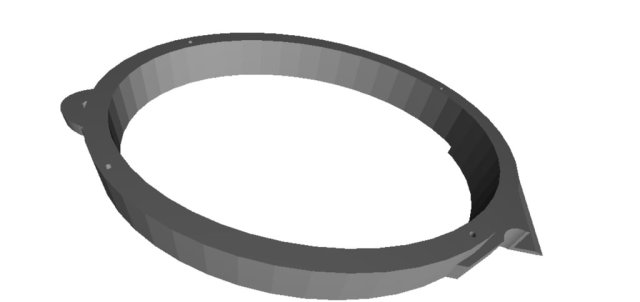

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Front 6x9 Speaker Mount
Front 6x9 Speaker Mount design listed for 2026 Chevrolet Equinox. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- Equinox
- Year range
- 2026
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
The mounting holes for the speaker aren't perfect, but for mine I was able to line up one pair of diagonal holes, then just punch a hole for the other two and drove the screw through it. Worked just fine.
I recommend some foam tape on the back side of this mount (where it touches the metal car door) similar to what's on the factory speakers back side. Just a thin foam will be enough to prevent any wobbles/rattles.
To print, flip it over so that the speaker mount side is on the build plate, and add supports for the two tongues on each end. I recommend 4-6 layers top and bottom and at least 4 walls for strength and durability. If you rotate it so that it goes corner-to-corner diagonally on the build plate, it will fit on a 10x10 plate (256mm square). It fit on my Bambu A1 but just barely.
Like I said it's not perfect, but it does the job.
Enjoy!
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
