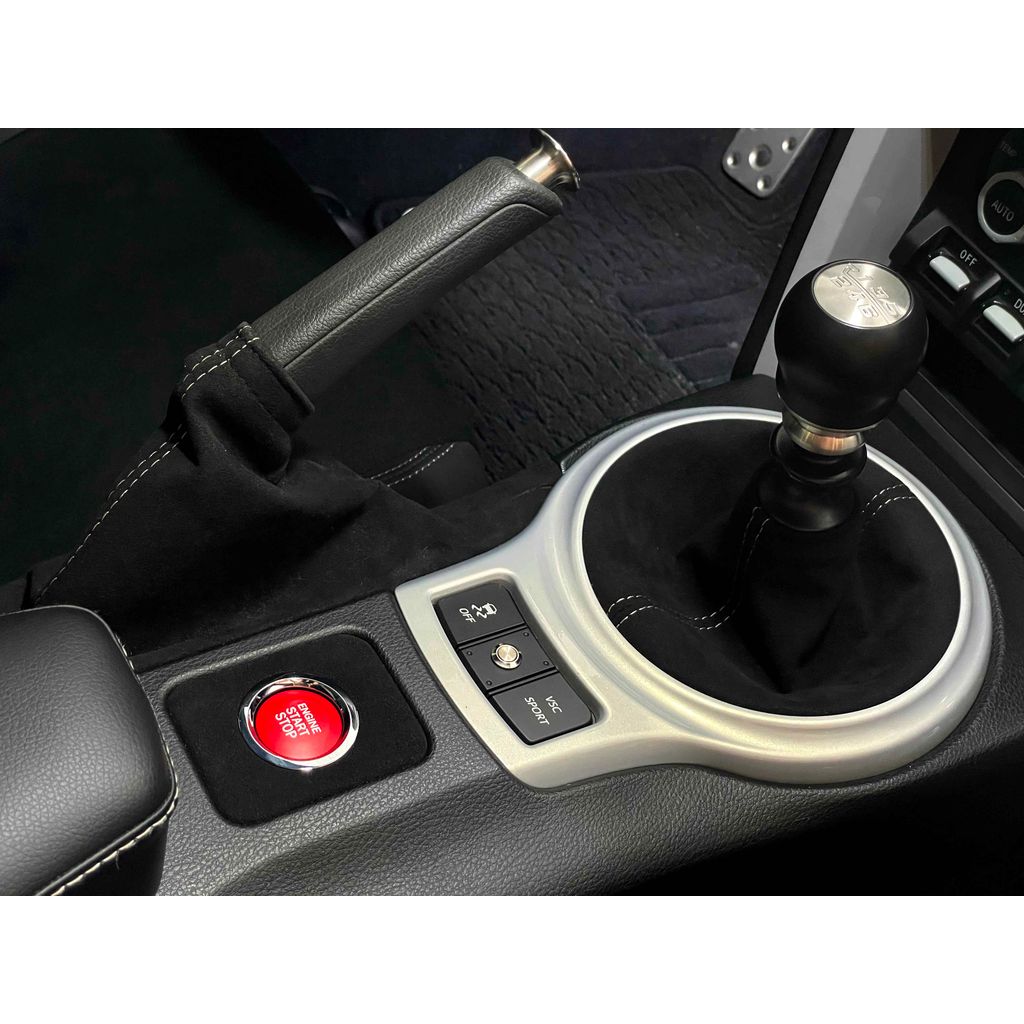

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
GT86 Center Console Push Start Mount
GT86 Center Console Push Start Mount design listed for 2012–2021 Toyota 86. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- 86
- Year range
- 2012–2021
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Make sure to print in a material that can handle the heat of a vehicle in the sun. In my experience, PLA does not do well in a hot car. I used TPU for my print. ABS or PETG would work well too.
Print the drill template and remove your center console. Use the drill template to drill the five 3mm holes in the center console. The four in the corners will be used to mount the final piece. The center hole is a pilot hole for a hole saw. Use a 2 1/8" hole saw to cut a large hole in the center of the recessed area.
Now print the actual push button mount. Insert four M3 countersunk screws into the recessed holes in the corners. Use epoxy and/or nuts on the backside to keep the screws from falling out or spinning.
If you put the push button module into the piece you'll notice its a tad loose, this is so you can wrap the piece with some material and get the module in. It will be tight once you wrap it. I used black alcantara to match other trim in my interior. Cut out the center so you can shove the button in there.
Mount the piece into the console, cut and extend the wire harness, and put it all back together.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
