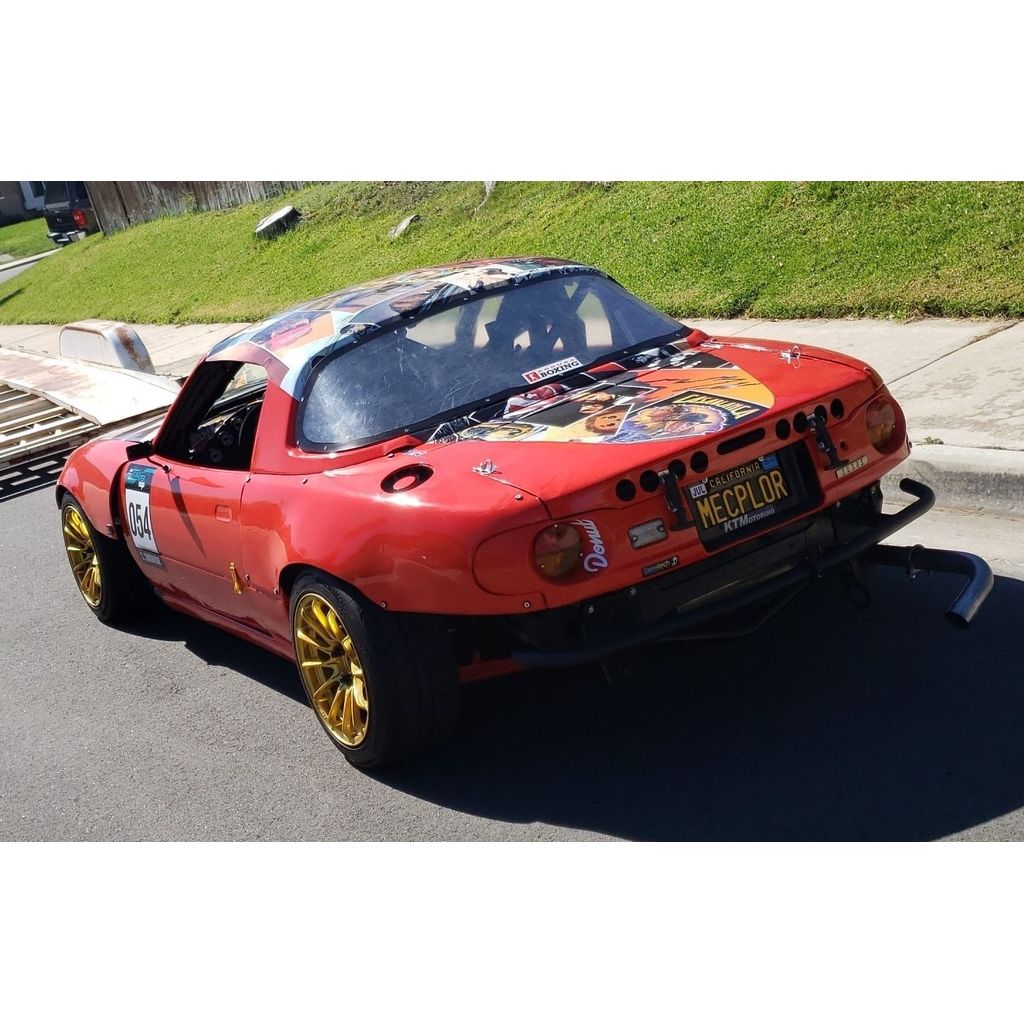

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
GV-style tail light panel
GV-style tail light panel design listed for 1990–1997 Mazda Miata. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- Miata
- Year range
- 1990–1997
- Submodel
- GV
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Click on "Thing Files"!
File Descriptions (Orientations are out of whack):
gv full.stl - original scan, weighs a ton, has a ton of mess - for daring editors only.
GV corrected and reduced - simplified and ready to print (kind of)- probably the same as solid v2 corrected.
GV full step - not sure if it works, but try it. Supposed to be a solid file.
Feel free to mod it and remix it, and definitely repost it.
I suggest using at least a 0.6 nozzle to print this, however before even printing it, maybe throw the quad mesh or the step file into fusion360 and mess with it to straighten it out.
Post remixes!
Headlights:
https://www.thingiverse.com/thing:4014792
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
