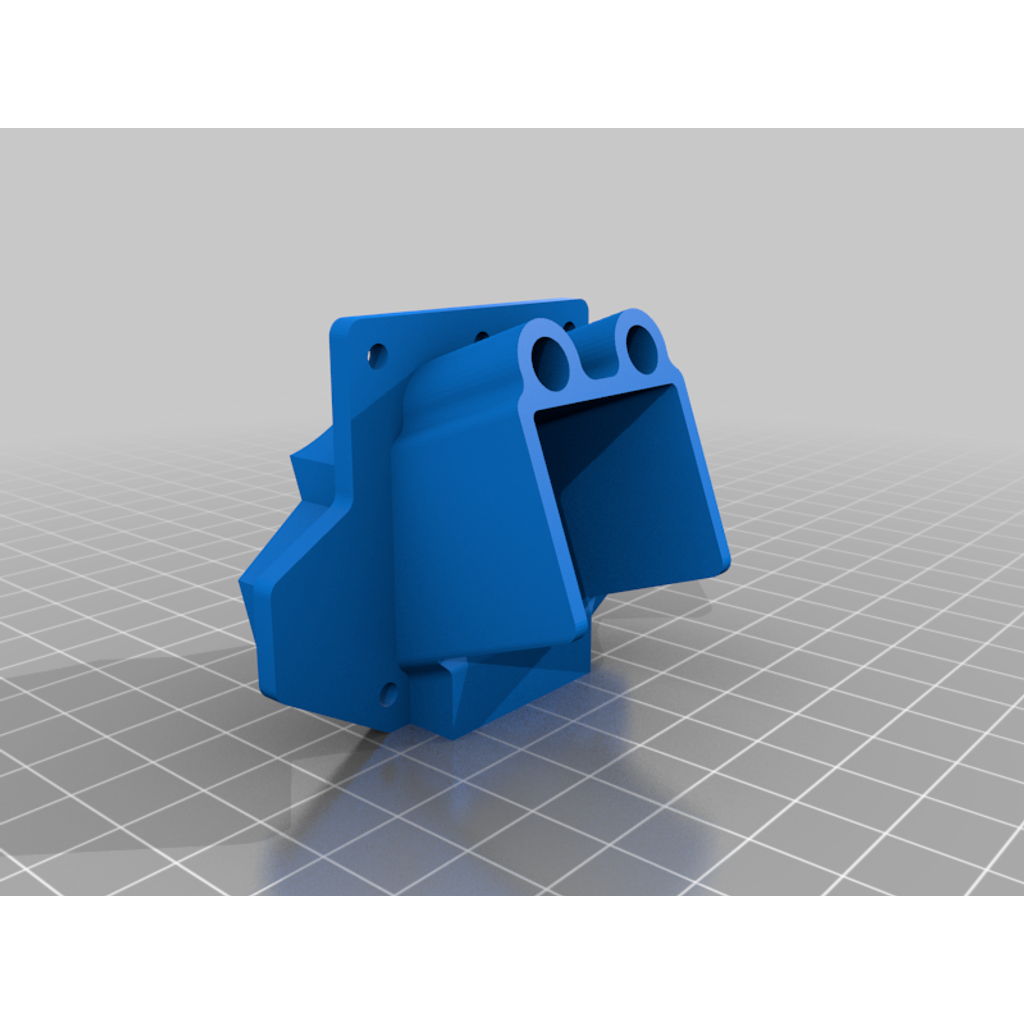

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
S5 Aftermarket Grille Camera Mount Remix 1
S5 Aftermarket Grille Camera Mount Remix 1 design listed for 2016 Audi A5. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Audi
- Model
- A5
- Year range
- 2016
- Submodel
- S5
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
- Angled down further to match Audi original camera angle (20 degrees instead of 15).
- Camera moved forward and down to clear grille elements for 180 degree view.
- Optimized for 3D printing. See printing notes.
- Uses original Audi screws for mount, no additional hardware needed.
- Can be installed without screws or Sugru, but the Sugru method is still recommended.
- Open bottom for fitment and moisture draining.
- Reduced size of bottom so it can't be seen through grille.
- Increased size of mounting screw holes for compatibility.
- Added base bumper at bottom of model to rest against crash bar.
Printing/Installation Notes:
- This does require you to remove one horizontal member of the grille under the Audi logo.
- Model is designed to be 3D printed face down (camera pointed to the ground) for best visible surface finish, least support, and easiest to break off of support.
- Recommended to use the Sugru method described here: https://www.audiworld.com/forums/audi-a5-s5-rs5-coupe-cabrio-b9-220/a5-s5-rs5-style-grille-v2-%7C-camera-mount-3d-print-file-stl-2970520/#post25304994
- Use the original Audi mount screws to secure the camera in the mount.
- When installing the camera, it is snug but the camera lens frame should stick out about half millimeter (see photo).
- Mount base will rest against vehicle crash bar.
- This CAN be installed/removed without needing to take the bumper off, however it's a very tight fit, you will need to stretch the grille forward.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
