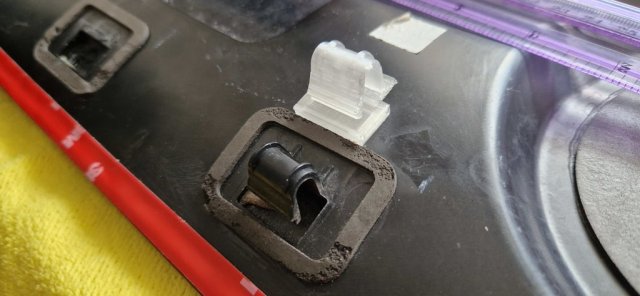

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Decklid Panel Repair Clips
Decklid Panel Repair Clips design listed for 2011–2014 Ford Mustang. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Mustang
- Year range
- 2011–2014
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
These clips are a drop-in repair solution for the 2011-4 Mustang. I modelled them based on the factory clip dimensions, but beefed them up in the right spots to make them more durable when reinstalled.
✅ Features:
Modelled for accurate fitment
Printed in PETG or ABS, PLA is not recommended as the decklid can get hotter than the sun.
Zero trimming or modding required
Print with tree supports and brim print-bed adhesion.
🖨️ Recommended Print Settings:
Material: PETG or ABS (PLA might work, but is more brittle)
Layer Height: 0.2mm, I used dynamic quality on my Creality V3 SE
Infill: minimum 20%
Orientation: Print sideways
🔧 Installation Tips:
Ensure the cutouts on the decklid are free from any glue that is left over when the decklid backing plate and cover are assembled at the factory. Secure in place with heat-resistant tape or plastic-friendly epoxy. You may want to consider welding the clips to the mounting plate for added strength. When fitting the cover back on the trunk, I also added a perimeter of 3M automotive 1.8mm foam tape to keep everything in place.
Theres also a support for the 2 screws on either lower corner, mine were splintered so I made these to either replace or slide over to prevent what's left from falling to pieces.
Notes
The "Fit check" file is useful for seeing how the clip fits in the aperture and avoids slipping inside the trunk lid void.
The clip is not meant to fill the metal-work opening; the combined positioning gives the right level of tension.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $17.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $18.00 | General-purpose candidate; heat and creep need review. |
| ASA | $18.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $18.50 | Enclosed printing; review application and dimensions. |
| TPU | $20.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $20.00 | Moisture, tolerances and application require review. |
| PA-CF | $21.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
