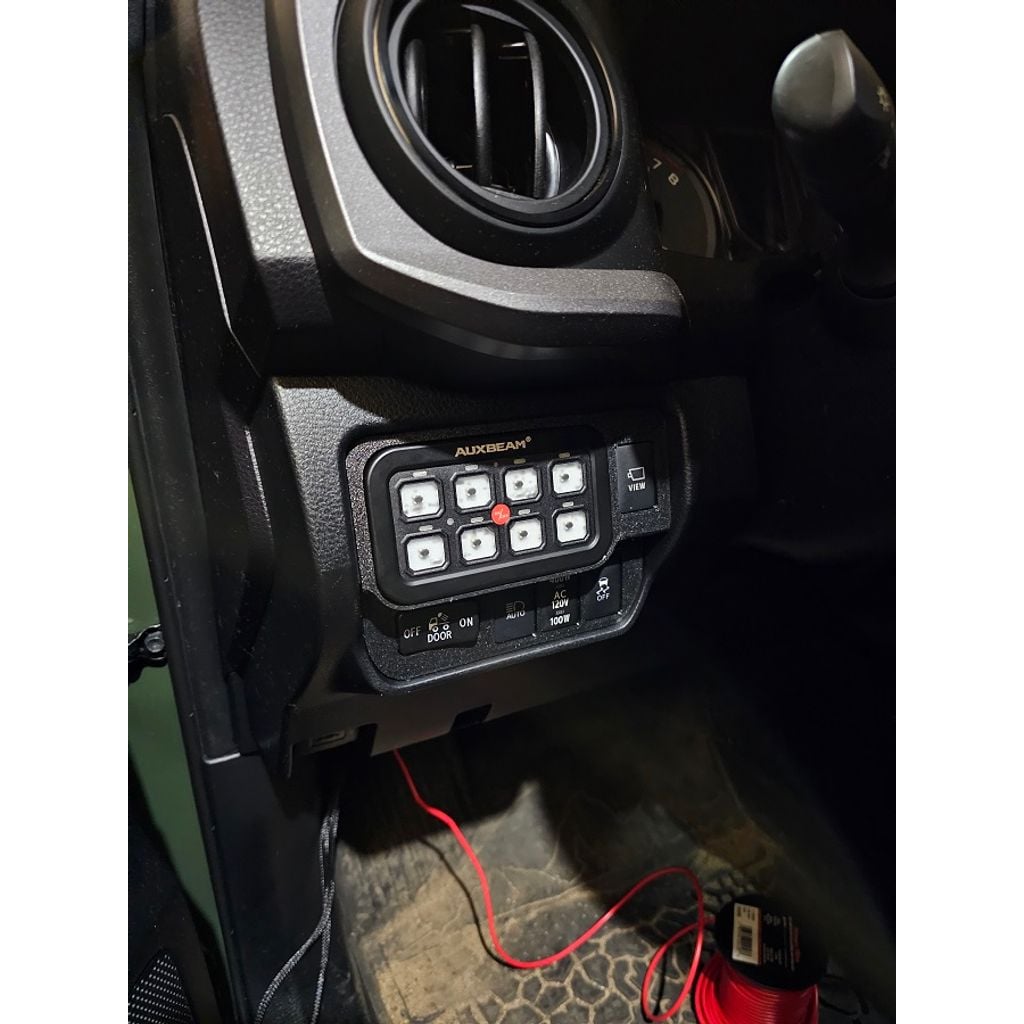

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
AuxBeam panel
AuxBeam panel design listed for 2016–2023 Toyota Tacoma. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Tacoma
- Year range
- 2016–2023
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Trying to print this as one piece was proving challenging, and I wanted both panel faces to have the print bed texture, so I split using Fusion360.
Width for the top with auxbeam should be 156.48mm
Width for the bottom should be 150.48mm
When gluing halves together, line up the structure spines. You'll know what I'm talking about when you see them.
My print settings: (I'm very new to this, they may suck)
Ender 3 KE, Creality Print, Overture PETG
I used the CR PETG profile with the following changes;
.20mm layer height
20% infill
50mm/s speed
240c temp
60c build plate temp
fan off except for overhangs and bridges
6mm retraction distance
40mm/s retraction speed
standard zigzag supports, 15% density
**NOTE** You'll have to trim the dash a tad to make room for the upper right switch. You'll see it when you remove the OEM panel, but there are mounting points for something but they are unused. They are easy to trim away.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $57.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $59.00 | General-purpose candidate; heat and creep need review. |
| ASA | $69.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $66.00 | Enclosed printing; review application and dimensions. |
| TPU | $85.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $85.00 | Moisture, tolerances and application require review. |
| PA-CF | $99.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
