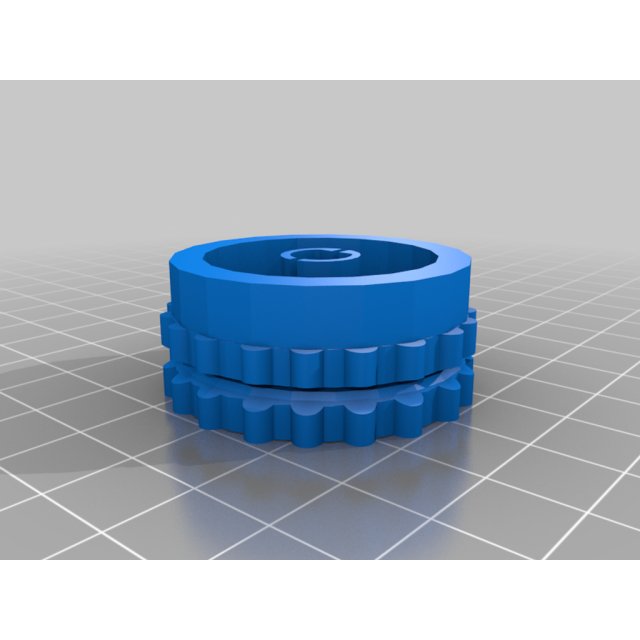

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Radio Knob
Radio Knob design listed for 2022 Toyota Tundra. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Tundra
- Year range
- 2022
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I have just completed the 2-piece design if you want contrasting colors like the black and silver of the OEM knob. To make one of these print the 2-piece base and 2-piece trim ring models. Print them both as oriented... print the trim ring without supports and the base with supports. The trim ring face on the bottom will be the smoothest so have that facing out when you glue it onto the base.
Since vehicle interiors get very hot in summer PLA is probably not the best choice. Better to print these in PETG, ABS, or some other material that can withstand 140 degrees F or so.
Edit: I just added a reinforcing sleeve that you can slip over the existing knob shaft socket to make it stronger. Just add a little glue on the wings to stick to the existing wings. Be careful not to slop a lot of glue on the bottom or it might obscure the translucent ring that lets the instrument panel light through. I used some JB Weld Quick to glue mine on and wadded a little paper towel in between the new part and the knob to press it into the existing whilst setting.
Edit 2: I just added a piece that you can use to repair your broken OEM knob. The file name includes the word "repair". Use a Dremel tool to cut out or grind out the broken center shaft gripper then use a sanding disc to smooth out where you cut it. Then glue in this repair shaft gripper. Use 3M super glue for plastic or JB weld epoxy for plastic for best results.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
