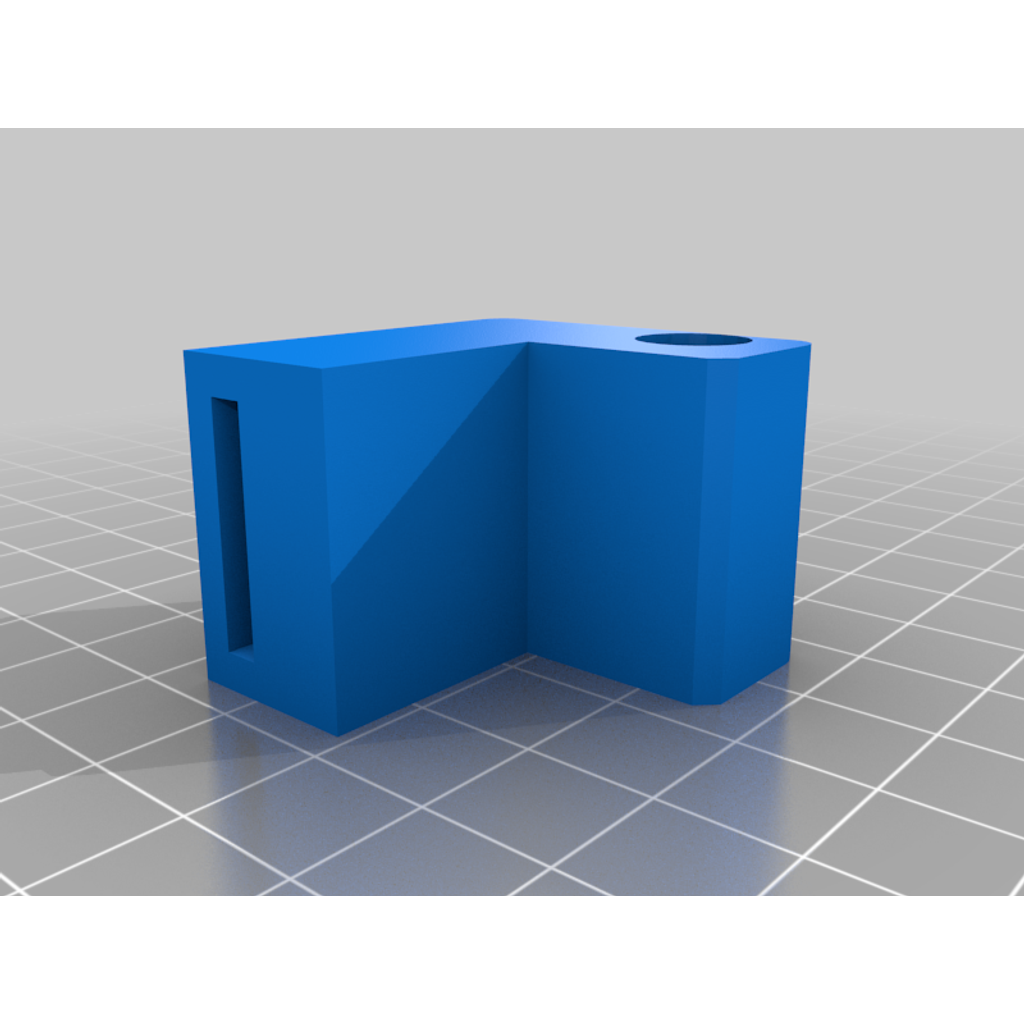

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Brake Vacuum Mount
Brake Vacuum Mount design listed for 2001–2026 Toyota Sequoia. Listed category: other. Verify dimensions, fitment and material suitability before printing.
- Make
- Toyota
- Model
- Sequoia
- Year range
- 2001–2026
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
I fired up TinkerCad and did the final touches in Sketchup to produce a quick and dirty bracket adapter. It may look a little crude but it sure does the job! It locks nicely in place and the hose has a nice flexible mount point.
NOTE: You MUST use a flexible filament as this bracket adapter is meant to stretch slightly over the existing bracket post and lock in place as well as stretch for the the hose insertion. Also when slicing the gap will appear for the hose insertion (tested with Cura and Slic3r).
To relieve tension of the hose simply bend the bracket to the rear slightly.
P.S. The original part to replace it was around $30:
http://parts.lakelandtoyota.com/p/TOYOTA__SEQUOIA/TUBE--HOSE-TO-HOSE--NO1/3976783/447630C011.html
Part# 44763A
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Cost examples only. This design is not offered for sale; permission or specialist application review is required.
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
