Camera Mount for Dashboard Grid
Camera Mount for Dashboard Grid design listed for 2023 Chevrolet/GMC Colorado/Canyon. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet/GMC
- Model
- Colorado/Canyon
- Year range
- 2023
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description

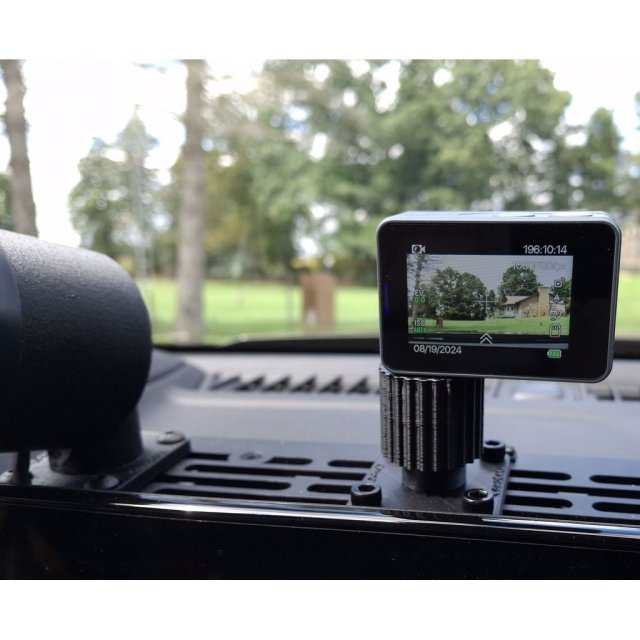

This is a standard 1/4-20 camera mount for a '23+ Chevy Colorado and GMC Canyon using either a Bulletpoint Rubigrid, or a Badlands Dash Grid. (standard AMPS mount)
There are two body files. The one ending in "BL" is taller for the Badlands Industries Dash Grid, and the other "BP" is shorter for the BulletPoint RubiGrid mount. Only difference is the height to be able to turn the camera around onto the 1/4" bolt. The shorter BP may not allow enough clearance on a Badland dash grid.
3rd file is the "knob" which is required for both.
Print the bodies right side up w/ support. Knob is printed upside down w/o support.
Requires a standard 1/4"-20 bolt, one flat washer and two nuts. Put the bolt up through the bottom of the body, put on the washer then one nut on the bolt, use the knob to snug up the bolt to the body, remove the knob and start the other nut on the bolt and then put the knob over it. Allows you spin the camera onto the bolt, then spin the knob up to the camera to secure at desiged position.
You can also thread on other standard 1/4-20 fittings/mounts onto it.
I printed with "Fuzzy Skin" in Cura. Settings in pic. Turns out similar to dashboard texture.
I also have a couple other prints for the BulletPoint and Badlands grids in "my designs".
If you have any suggestions to improve any of my prints, please feel free to send me a message. Thx
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
