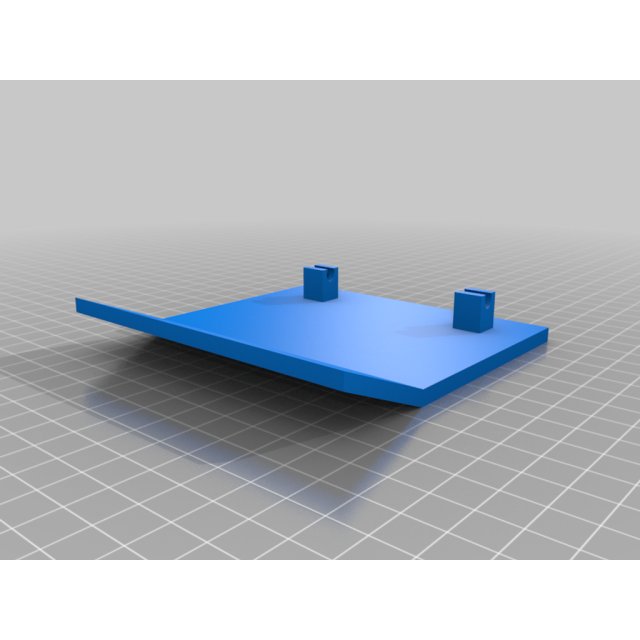

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Ashtray Cover
Ashtray Cover design listed for 1997–2006 Jeep Wrangler. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Jeep
- Model
- Wrangler
- Year range
- 1997–2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Update 06.20.16: I adjusted the hinge pieces to fit. I used a wad of tack-it to keep the top closed. So far it's holding up to the 100+ temps here. Didn't realize the previous .stl file was v2f, but v2a is the current iteration, with the hinge pieces in the correct place.
A couple of caveats...
1) My first design with 123Design, so it was a learning project for sure.
2) The extrusions designed to fit over the hinges actually miss the mark, but they're close enough to the hinge that it actually holds it in place. The top of the extrusion ends up right below the hinge.
3) Originally I was going to add an extrusion that would latch to the metal piece in the cavity that the ashtray usually snaps into, but opted it was unnecessary (see caveat #2).
Source description, under the recorded CC-BY-4.0 license.
Print instructions
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $42.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $43.50 | General-purpose candidate; heat and creep need review. |
| ASA | $50.00 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $48.00 | Enclosed printing; review application and dimensions. |
| TPU | $60.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $60.00 | Moisture, tolerances and application require review. |
| PA-CF | $69.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
