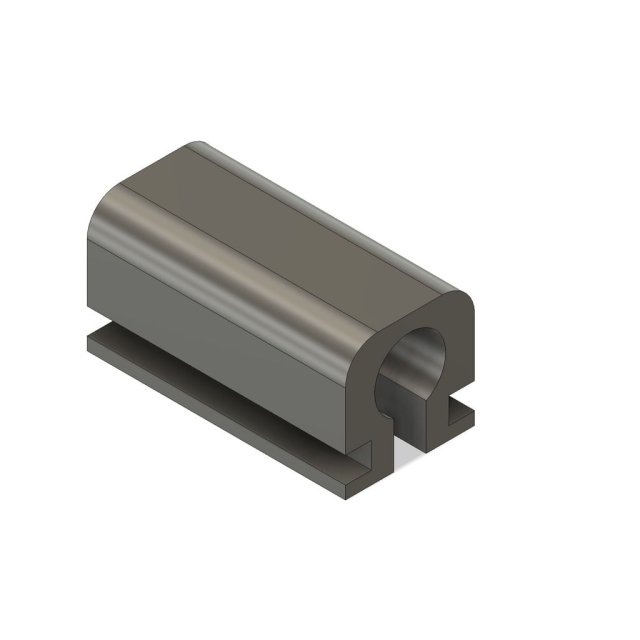

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Door Lock Rod Bushing/Guide
Door Lock Rod Bushing/Guide design listed for 1967–1981 Chevrolet El Camino / Chevelle / Nova / Camaro. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Chevrolet
- Model
- El Camino / Chevelle / Nova / Camaro
- Year range
- 1967–1981
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Made it because the lock was sagging down in the door making it troublesome to lock and unlock from inside the car.
Setup to be printed fully vertical. The grooves where it slides into the door is a bit loose. The step file is included in case there are any changes you want to make.
Based on internet research, this should work for the following cars:
1967-1974 Nova/Chevy 2
1969-1981 Camaro
1969-1981 Pontiac Firebird
1969-1972 Pontiac GTO
1969-1972 Chevelle
1969-1972 El Camino
1970-1972 Monte Carlo
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
