As anyone who has a 1.4L Chevrolet Cruze (or similar) and who has tried to remove the ignition coil connector to do plug service knows, the orange lock tab will break if you even look at it the wrong way.
I searched far and wide for a replacement part and could not find one.
So I measured the original and duplicated it as best I could.
Once printed in ABS and cleaned up a bit using an X-Acto knife and sandpaper I vapor polished it and it works like a charm.

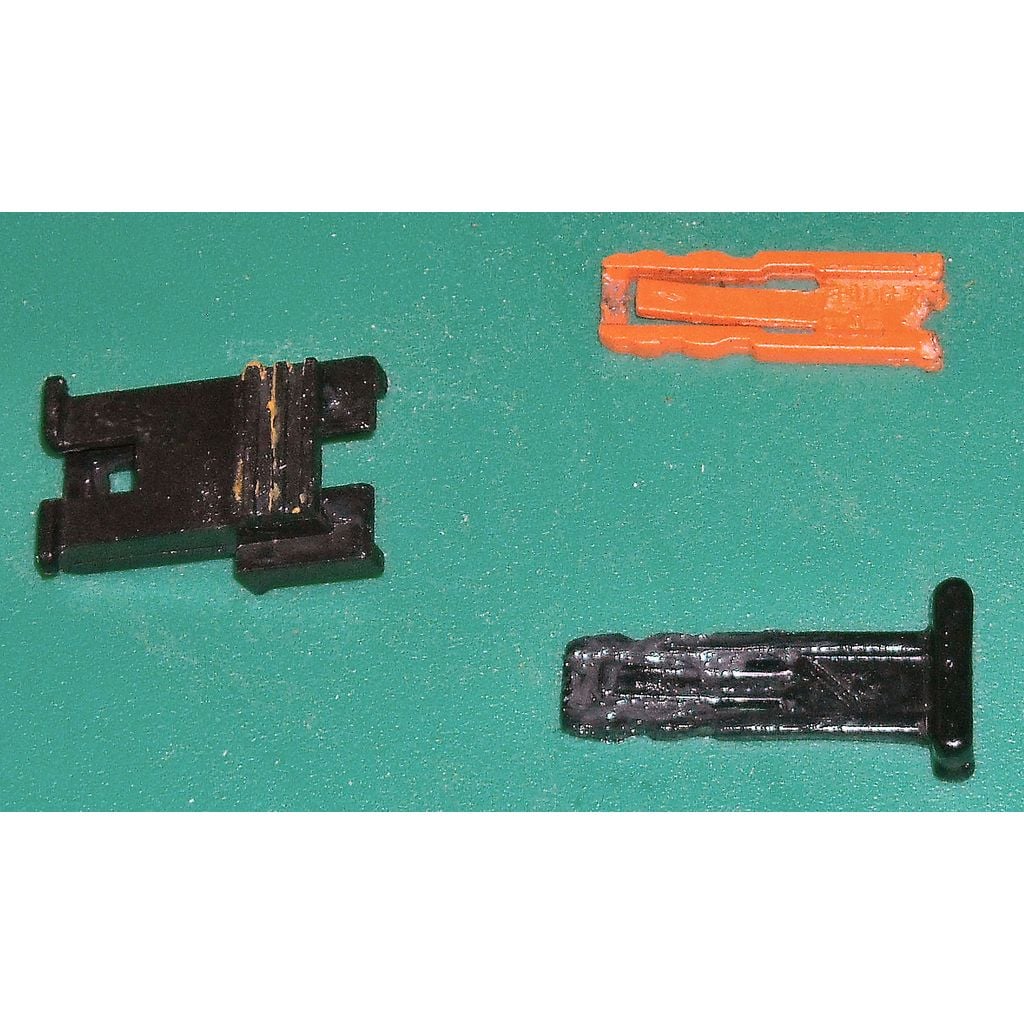

Please note that in the photo it is covered in silicone grease so it appears indistinct, but it is a faithful duplicate of the original dimension-wise.
I have discovered since originally posting this that it will likely be applicable to-
Buick Encore 2013-2017
Cadillac ELR 2016
Chevrolet Cruze 2011-2016
Chevrolet Sonic 2012-16
Chevrolet Trax 2013-2016
Chevrolet Volt 2011-2015
These all share the same coil pack and connector.
It may fit other applications using "Weatherpack" connectors as well.
