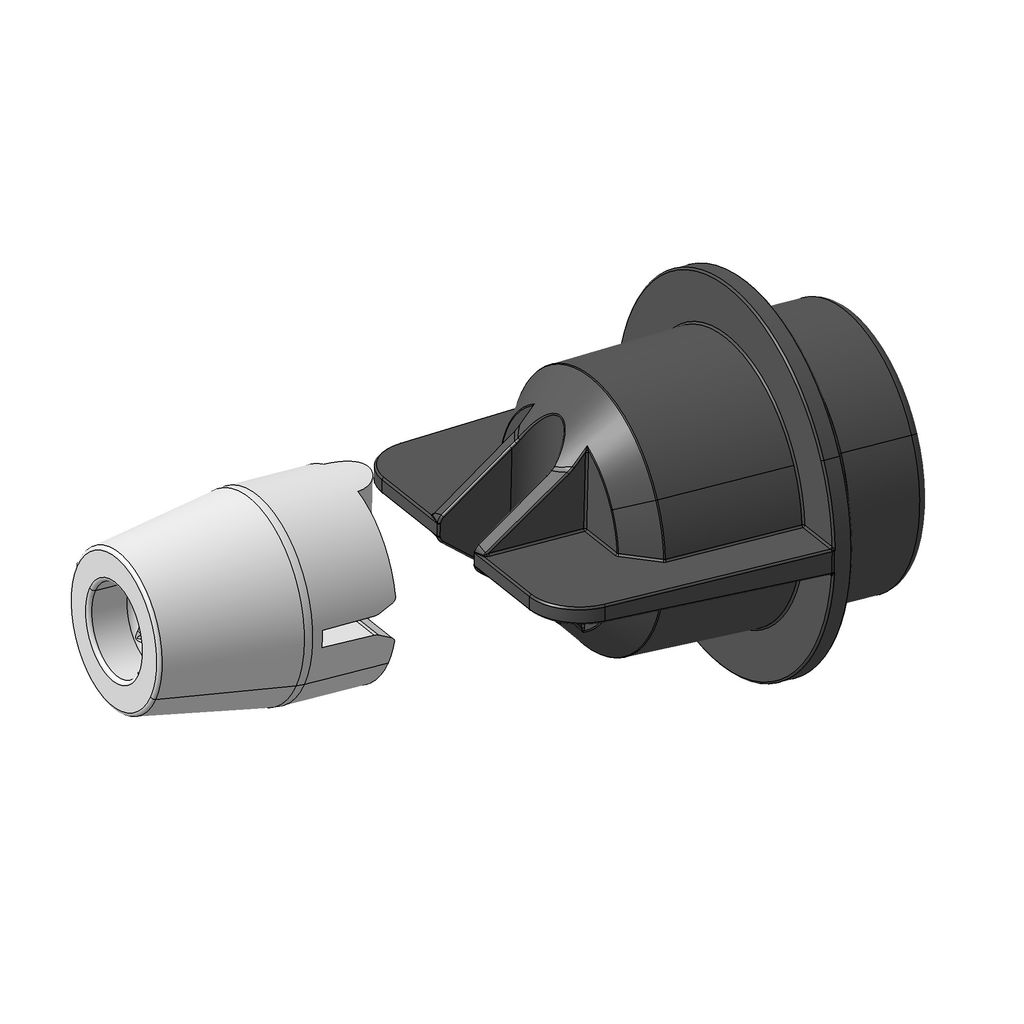

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Dust Cap & Socket Headlight Sidelights
Dust Cap & Socket Headlight Sidelights design listed for 2007–2014 Mercedes-Benz C-Class. Listed category: lighting. Verify dimensions, fitment and material suitability before printing.
- Make
- Mercedes-Benz
- Model
- C-Class
- Year range
- 2007–2014
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Useful to tighten or losen the dust cap in places that are hard to reach by hand.
So tight fit and use of an elongation rod is intended.
Dust cap can be found for example on Ford Mondeo MK3 and Mercedes-Benz C-Class W204/S204.
Needs a sealing to work properly (Ø26.5 x Ø38.5 x 4mm).
OEM-Part-No's:
Ford: 1S71-13K046-A
Mercedes-Benz: 1 305 219 106
Edit 2025-02-08:
Cap model now included as well.
Did my best to assess the locking mechanism as precise as possible. But not yet tested.
Not ideal for FDM printing though. Will need supports and therefore rework.
Dimensions in Millimeters (mm).
Hope you like it!
Best regards from
Bernd's Custom 3D's
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $21.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $21.50 | General-purpose candidate; heat and creep need review. |
| ASA | $23.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $22.50 | Enclosed printing; review application and dimensions. |
| TPU | $26.00 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $26.00 | Moisture, tolerances and application require review. |
| PA-CF | $28.00 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
