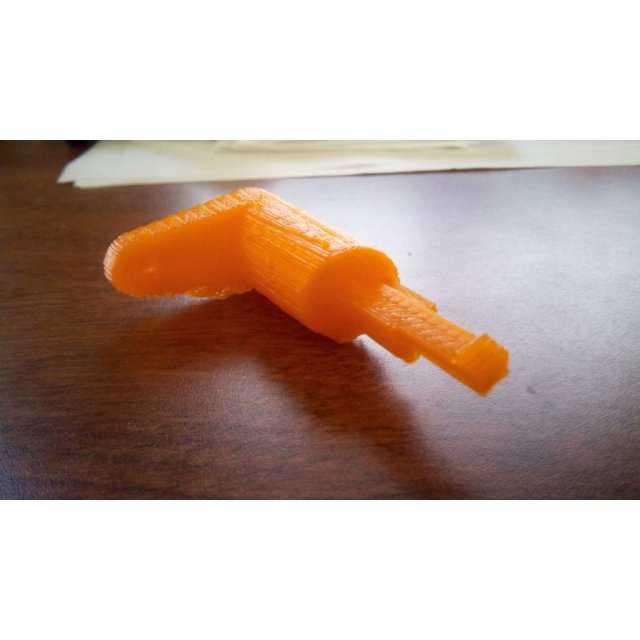

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
HVAC Mix Door Lever
HVAC Mix Door Lever design listed for 2009 Ford Explorer. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Ford
- Model
- Explorer
- Year range
- 2009
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
I made this part to repair a 2009 Ford Explorer that wouldn't blow air out the panel vents. I opened the glove box and dropped it down so i could access behind it. I found this little piece with the arm broken clean off. It pulled straight out. Ford only offered it as part of a $400 assembly, that I would have to remove the dash to install. I changed the design to take a screw where the old one had a plastic pivot.
It's not parametric but I have included the (messy) openscad file.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
