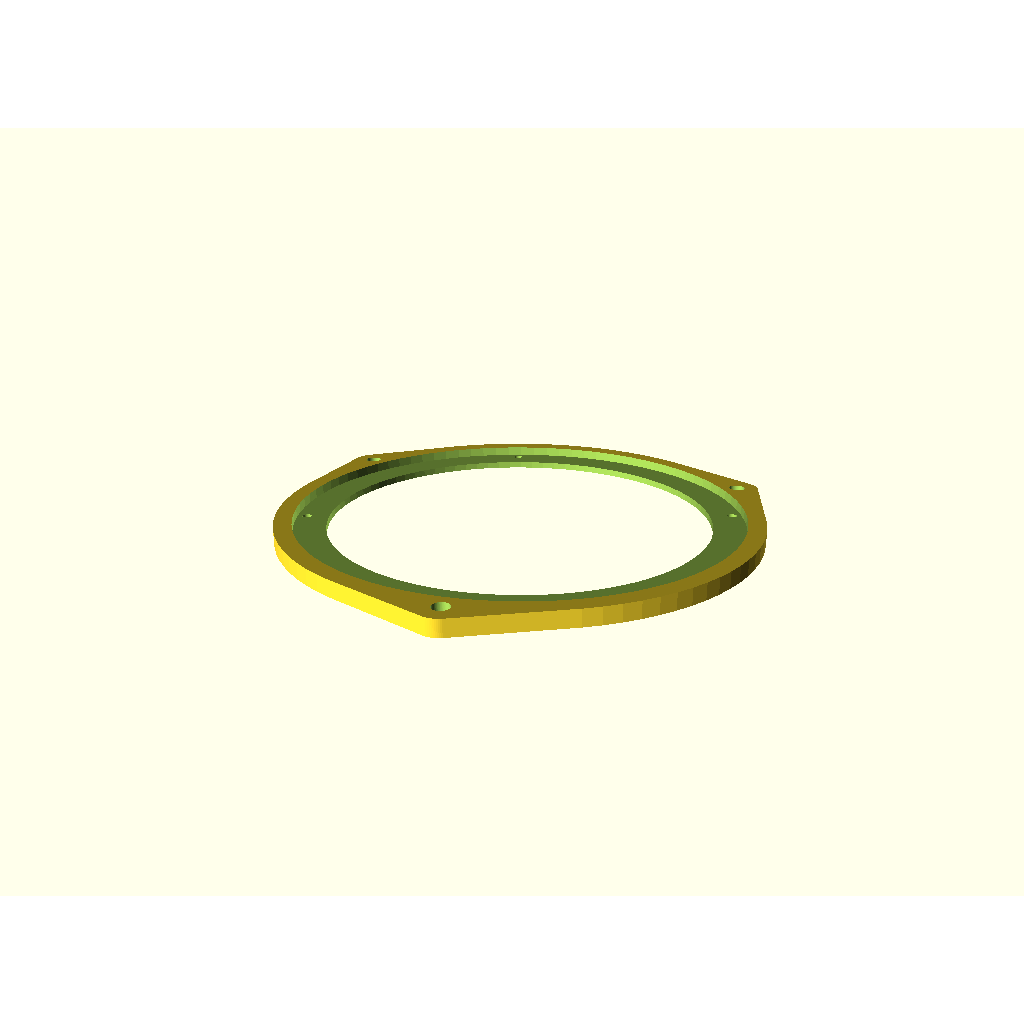

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Door Speaker Adapter
Door Speaker Adapter design listed for 2007 Fiat 500. Listed category: mounts-brackets. Verify dimensions, fitment and material suitability before printing.
- Make
- Fiat
- Model
- 500
- Year range
- 2007
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
* The stock speakers have rivets that must be drilled out.
* There is no way to get behind the speaker without removing the vapor barrier. The mount as pictured was bolted in place; this install process will require getting behind the vapor barrier. Another solution I'm looking into is installing rivet nuts so the speaker can be accessed simply by removing the door panel.
* The wires to the speaker come from the front; I did not accommodate for this in my design.
* Some of the four inner bolts have metal behind them.
* Stock speakers in the Fiat are very efficient; I wouldn't recommend replacing them without being prepared to get a new amp as well.
* In my install I sealed the door to make it behave more like a speaker box. This dramatically increased the bass from the doors but I have developed a rattle already. I will update this if I have to alter the design.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
