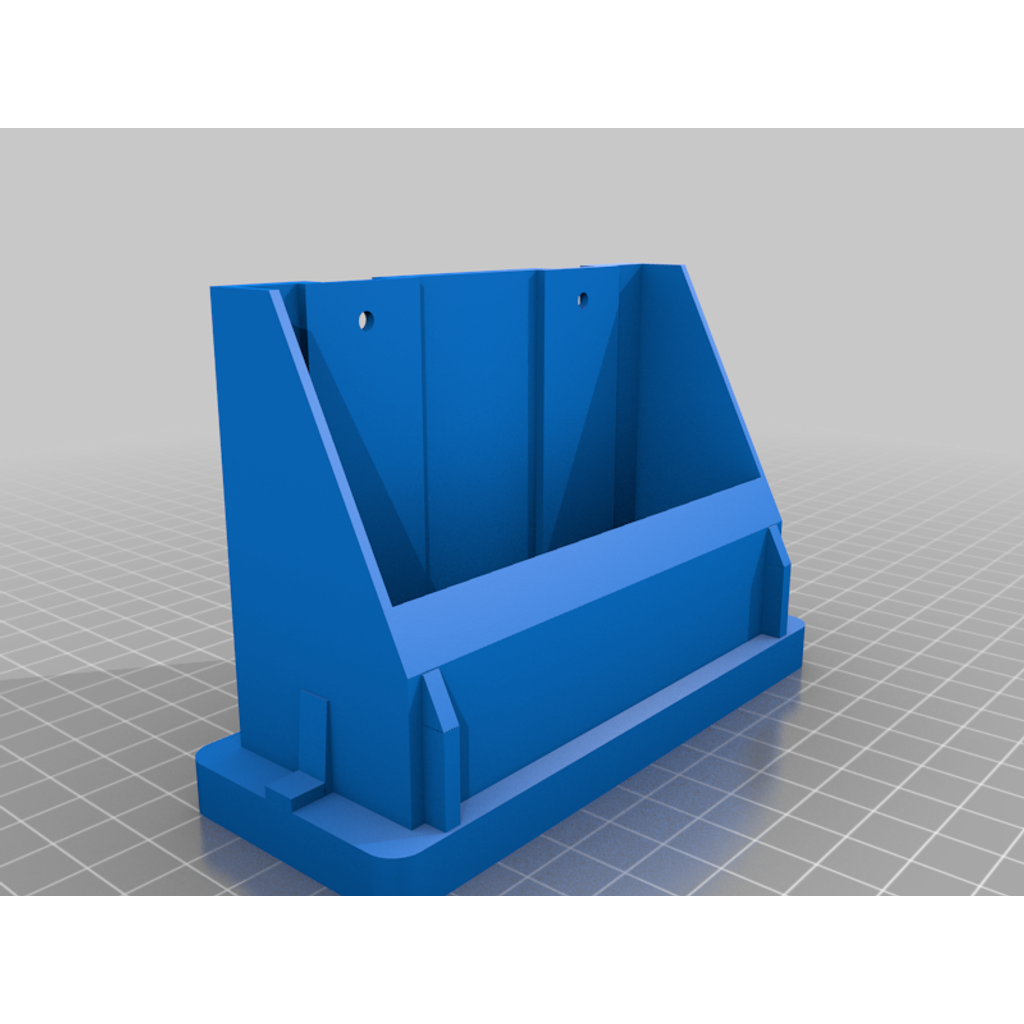

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Boost Controller Dash Mount
Boost Controller Dash Mount design listed for 1995 Subaru Impreza WRX STI. Listed category: interior. Verify dimensions, fitment and material suitability before printing.
- Make
- Subaru
- Model
- Impreza WRX STI
- Year range
- 1995
- Submodel
- STI
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Plumb the MBC as directed (ECU tuning and boost gauge are required!) then route the 2 vacuum lines from your engine through the firewall and now you can adjust the car's boost level on the fly. I added a 90° elbow to the Wastegate tap so both MBC ends face the same direction.
I wrapped my quick and dirty print with 3M 1080 automotive vinyl, it's great for making car stuff! Also, my spacing on the factory spring clips was wrong so I salvaged some random junk and made my own springs (the 2 black things in the picture).
*The fitment on this design isn't quite right but I've made it work and won't revise it until I have another reason to take it apart. Current flaws:
-Tabs on the side are not tall enough for good fitment
-Tabs on bottom are a bit too tall and needed a bit of sanding to fit
-Screw holes are too large and placed too far away to allow the factory spring clips to be transferred over
-An o-ring should probably be added to the MBC on the inside to seal the screw's shaft to the back of the Mount, I'm using it as-is and can't hear any leaks besides the built in bypass.
Source description, under the recorded CC-BY-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
