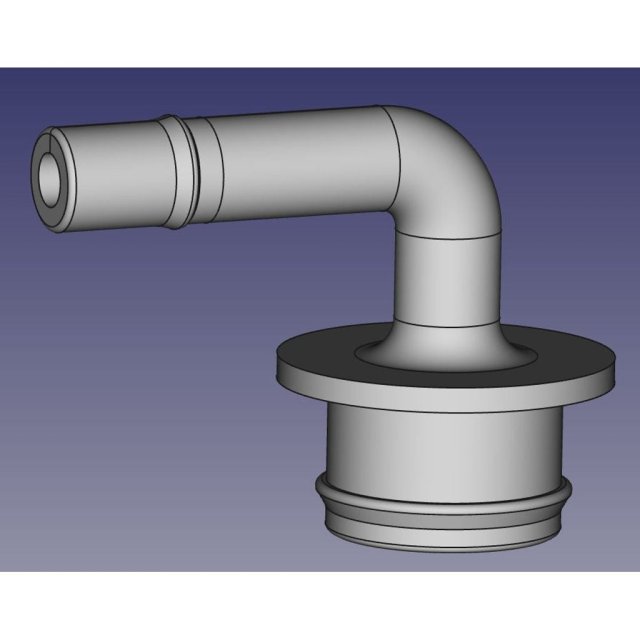

Coolant Reservoir Overflow Fitting
Coolant Reservoir Overflow Fitting design listed for 2004 Dodge Ram 1500. Listed category: cooling-system. Verify dimensions, fitment and material suitability before printing.
- Make
- Dodge
- Model
- Ram 1500
- Year range
- 2004
- Submodel
- 5.7L
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
Coolant Overflow Reservoir was missing the fitting for the overflow hose. Use this design + a 1" grommet from Harbor Freight (item #67582), and some 5/16 Radiator Overflow Hose from Autozone.
The hole is a little bigger than 1", but the harbor freight grommets are cheap and easy to find. It seems to keep the coolant from spilling out.
I have also included a "hose bender" design to facilitate a 90degree bend without cinching the hose.
