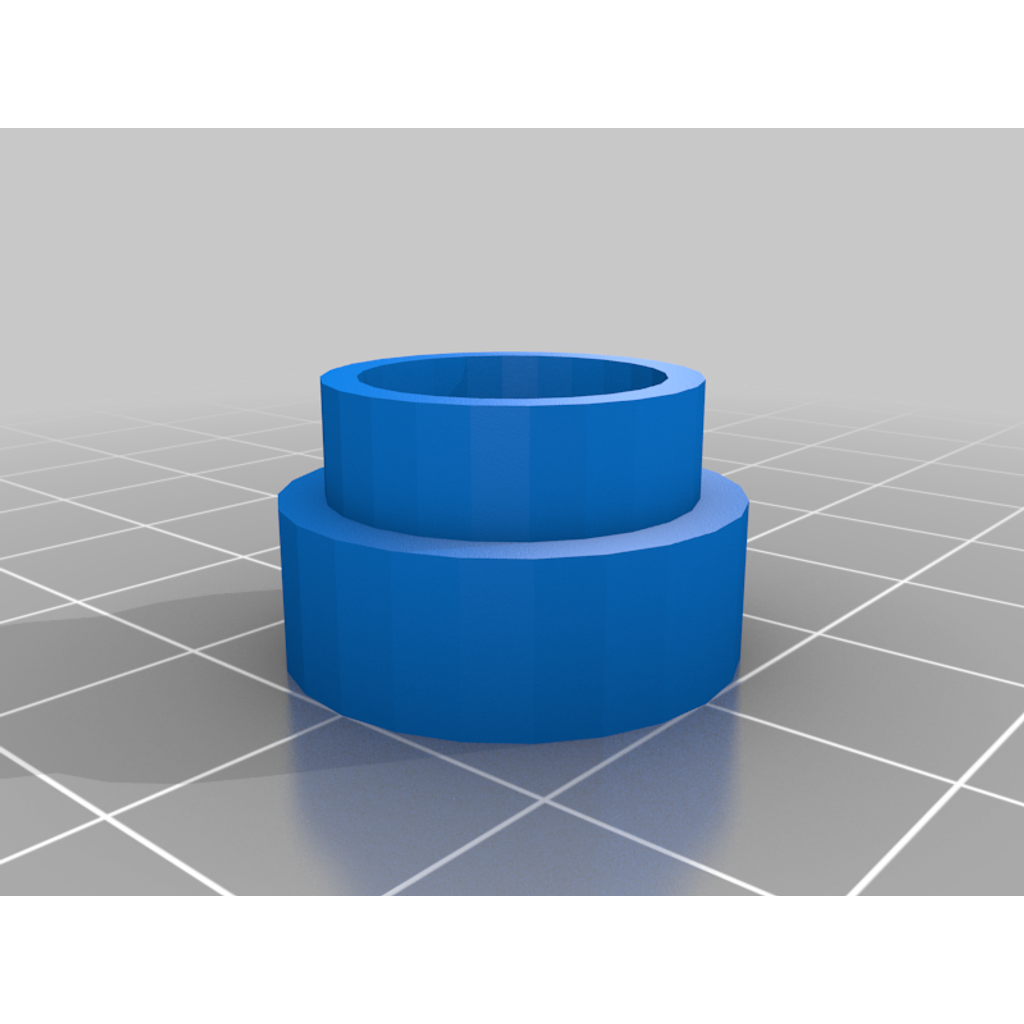

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Wiper Pivot Mount
Wiper Pivot Mount design listed for 1989–1994 Nissan 200SX. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- Nissan
- Model
- 200SX
- Year range
- 1989–1994
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
The parts are designed to print flat without support. To assemble:
1. Print out one each of the mount and insert and glue the insert into the bottom of the mount (it should fit without any fettling required.
2. Cut three M6 coach screws so about 20mm of thread remains (this is thread past the head and the square part of the neck).
3. Glue the coach screws into the mount, inserting from the top. The mount is designed to trap the square heads of the coach screws to prevent them turning, but a little glue always helps. I've included the sketchup source file in case anyone wants to redesign for hex head bolts.
4. Grab our original part and remove the old plastic mount by removing the split ring and pulling it away from the pivot.
5. Clean rust from the pivot, grease liberally and reassemble with your new mount.
6. Install back in your car and you're done!
The STL produced by sketchup is a bit buggy, but it seems to print OK.
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
