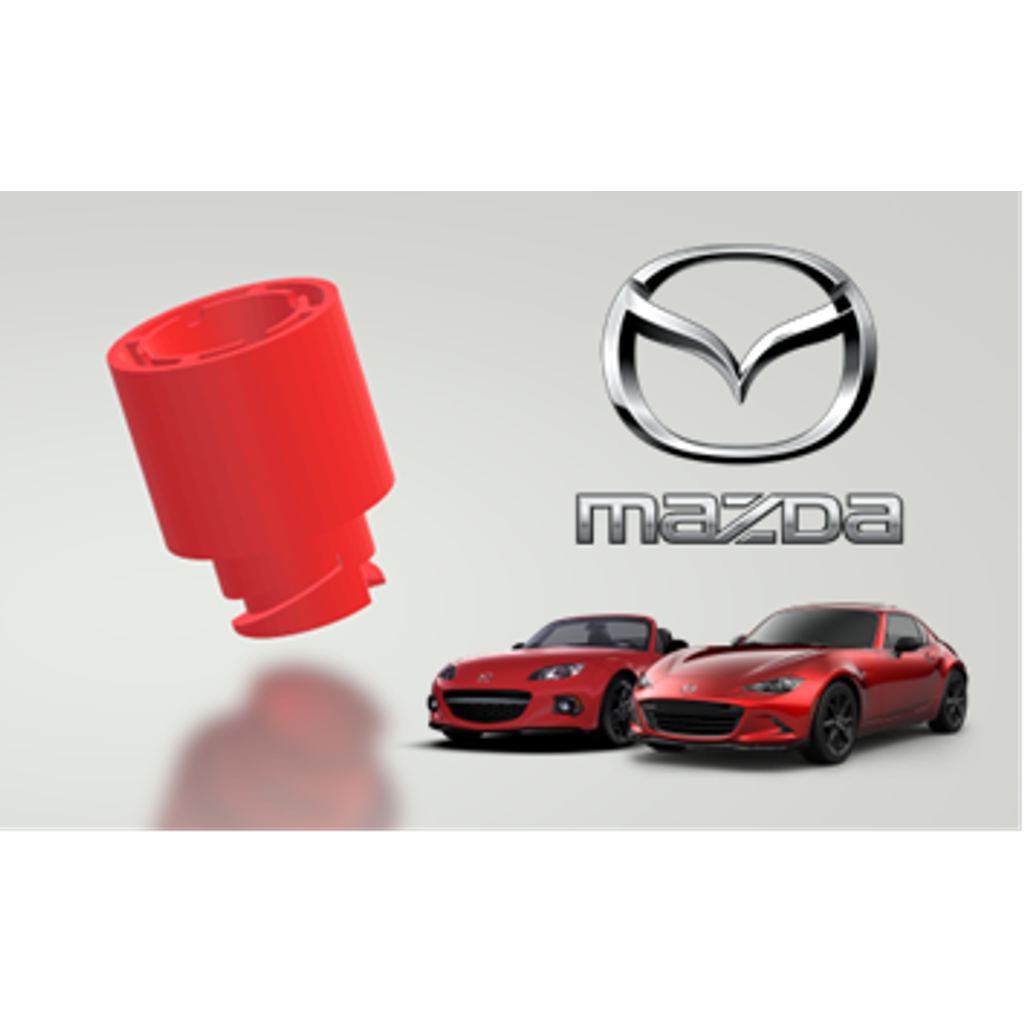

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Oil Filler Funnel Bayonet Holder
Oil Filler Funnel Bayonet Holder design listed for 2006 Mazda MX-5 Miata. Listed category: engine. Verify dimensions, fitment and material suitability before printing.
- Make
- Mazda
- Model
- MX-5 Miata
- Year range
- 2006
- Submodel
- Not supplied
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
This listing is not offered for sale. Commercial permission or application suitability needs review.
Description
After a little demand, I have made this version for a Mk3 NC / Mk4 ND Mx5.
This is designed to speed up the flow of oil and also be a sturdy platform for a funnel to fit.
This a bayonet type fitment and has been successfully tested on a Mx5 and a Fiesta 1.0 ecoboost.
I understand that NC and ND oil caps are interchangeable So this should fit a ND as well.
