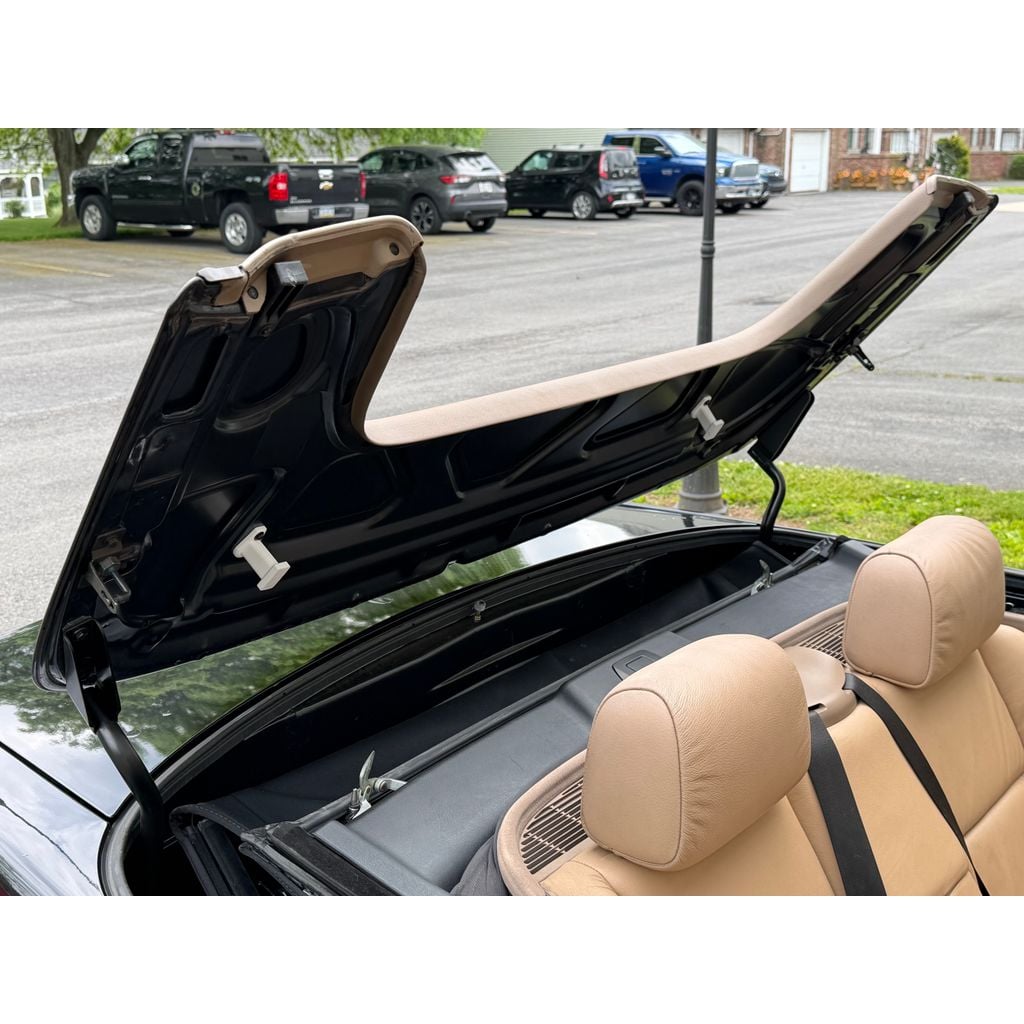

Designer source image. It may show an installed part, prototype or render; it is not an Orphaned Parts production sample.
Tonneau Cover Feet
Tonneau Cover Feet design listed for 1990–2000 BMW 3 Series. Listed category: exterior. Verify dimensions, fitment and material suitability before printing.
- Make
- BMW
- Model
- 3 Series
- Year range
- 1990–2000
- Submodel
- Convertible/Cabrio
- Engine
- Not supplied
Source approval status: pending. Source flags do not certify fit, material suitability or safety for your vehicle.
License conditions, files, application and fit are reviewed before work is accepted.
Description
There are two files,
1). e36_tonneau_cover_feet_with_bottom, this is the entire thing, designed to be 100% 3D printed and just screwed into place on your car.
2). e36_tonneau_cover_feet_without_bottoms, this one is the same thing but the height is shorter by a few mm to allow you to glue a piece of rubber to the bottom of it like the factory ones have.
I personally run the one that is full length but in the future once I replace my soft top I will likely use the slightly shorter one and put a piece of rubber on the bottom of it so that the top does not get damaged.
I would also strongly advice you to use a material that is rated to withstand heat as the backside of these tonneau covers may get extremely hot in the sun. I personally used PETG since I am using my first test print of it, but in the future I will likely reprint with Nylon or ASA.
Source description, under the recorded CC-BY-SA-4.0 license.
Print instructions
- Layer height: 0.2mm
- Infill: 70%
- Supports: As needed
Settings from the source; not independently tested by Orphaned Parts.
Print price estimates
Planning prices for one print, not a final quote. Defaults use a size allowance inferred from the part name, not a measured or sliced model. Filament suitability must be confirmed.
| Filament | USD / print | Application notes |
|---|---|---|
| PLA | $28.50 | Indoor prototypes; not a default material for hot vehicle interiors. |
| PETG | $29.00 | General-purpose candidate; heat and creep need review. |
| ASA | $32.50 | Candidate for UV exposure; verify temperature and geometry. |
| ABS | $31.50 | Enclosed printing; review application and dimensions. |
| TPU | $37.50 | Flexible designs only; not a substitute for rigid materials. |
| Nylon | $37.50 | Moisture, tolerances and application require review. |
| PA-CF | $42.50 | Filled nylon; abrasive filament and fit need review. |
Pricing assumptions and exclusions
USD: ($6 setup + $3 finishing + filament weight × assumed spool cost × 1.25 waste allowance + print hours × $2.50 × material time factor) ÷ 0.65. Rounded up to the next $0.50.
Assumed spool costs per kg: PLA $25, PETG $30, ASA $40, ABS $30, TPU $45, Nylon $65, PA-CF $95. Time factors: PLA/PETG 1.0, ASA/ABS 1.2, TPU 1.6, Nylon 1.4, PA-CF 1.5. These are proposed shop rates, not measured production costs.
Design work, test fitting, hardware, shipping and tax are additional where needed. Multi-file sets may need several prints. Use actual sliced weight and time when available. Final pricing is confirmed in writing.
